Same model may have multiple batches, images only for reference.

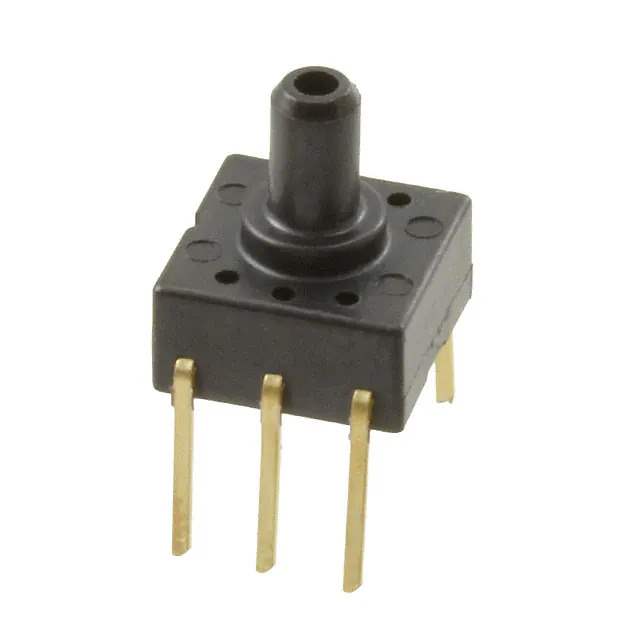

ADP42210 Real Image
Same model may have multiple batches, images only for reference.

ADP42210

Part No ADP42210
Manufacturer Panasonic
Catalog Pressure Sensors, Transducers
Description SENSOR 4.97PSIG 0.1" 0.1V / Pressure Sensor 4.97PSI (34.3kPa) Vented Gauge Male - 0.1" (2.5mm) Tube 0 mV ~ 100 mV 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Panasonic
Series PS
Package Box
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 4.97PSI (34.3kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.3%
Port Size Male - 0.1" (2.5mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 9.95PSI (68.6kPa)
Temperature Range - Operating -20°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number ADP422
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 910710-ADP42210
Ultra Librarian 3D Model Ultra Librarian ADP42210 CAD Model

Description

The Panasonic ADP42210 is a pressure sensor with a vented gauge pressure type.

  • Manufacturer: Panasonic
  • Pressure Sensor Type: Pressure sensor
  • Pressure Type: Vented Gauge
  • Pressure Range: 4.97PSI (34.3kPa) to 9.95PSI (68.6kPa)
  • Accuracy: ±0.3%
  • Output Type: Wheatstone bridge
  • Output Range: 0mV to 100mV
  • Feature: Temperature Compensated
  • Operating Temperature Range: -20°C to 100°C
  • Application: Board Mount
  • Package: Box
  • Port Size: male - 0.1" (2.5mm) tube
  • Port Style: Barbless
  • Series: PS series
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 9026.20.4000
