Same model may have multiple batches, images only for reference.

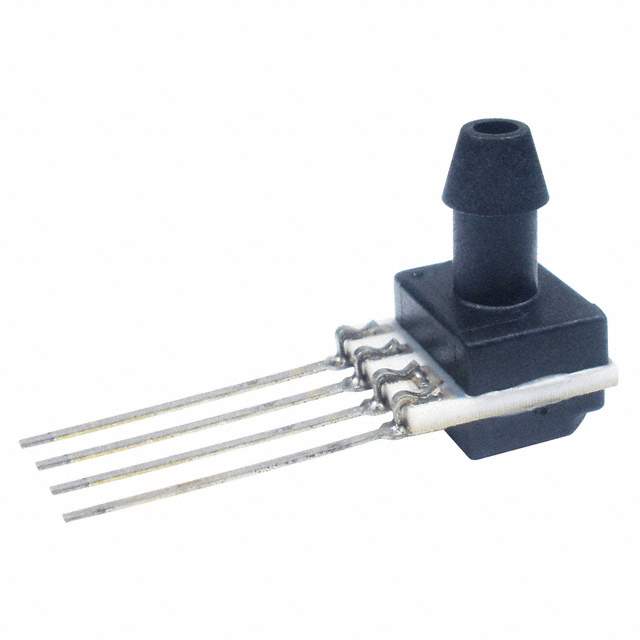

SSCSANN005PG3A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSANN005PG3A3

Part No SSCSANN005PG3A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSI GAUG 3.3V SIP / Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 12 b 4-SIP, Side Port
Datasheet
SSCSANN005PG3A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234344-SSCSANN005PG3A3
Ultra Librarian 3D Model Ultra Librarian SSCSANN005PG3A3 CAD Model

Description

The TruStability® SSC SSCSANN005PG3A3 is a pressure sensor from Honeywell Sensing and Productivity Solutions.

  • Port Size: Male-0.19 inches (4.93mm) tube
  • Application: Board Mount
  • Pressure Type: Vented Gauge
  • Operating Pressure: 5PSI (34.47kPa)
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 3V to 3.6V
  • Package/Case: 4-SIP, side port
  • Temperature Range: -40°C to 85°C
