Same model may have multiple batches, images only for reference.

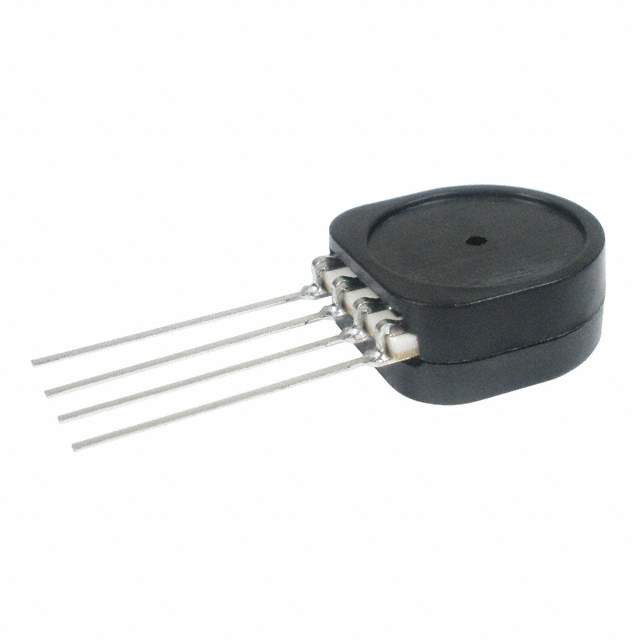

SSCSSND015PA2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCSSND015PA2A3

Part No SSCSSND015PA2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI ABSO 3.3V SIP / Pressure Sensor 15PSI (103.42kPa) Absolute 12 b 4-SIP Module
Datasheet
SSCSSND015PA2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234310-SSCSSND015PA2A3
Ultra Librarian 3D Model Ultra Librarian SSCSSND015PA2A3 CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability® SSC Series is a pressure sensor/transducer that has a Win Source Part Number of 1234310-SSCSSND015PA2A3.

  • Termination Style: PC pin
  • Package: bulk
  • Standard Package: 50
  • Output Type: I2C
  • Output: 12 b
  • Accuracy: ±0.25%
  • Pressure Type: absolute
  • Operating Pressure: 15PSI (103.42kPa)
  • Port Size: not applicable
  • Port Style: no port
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 3V to 3.6V
  • Package/Case: 4-SIP Module
  • Supplier Device Package: 4-SIP
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 9026.20.4000
