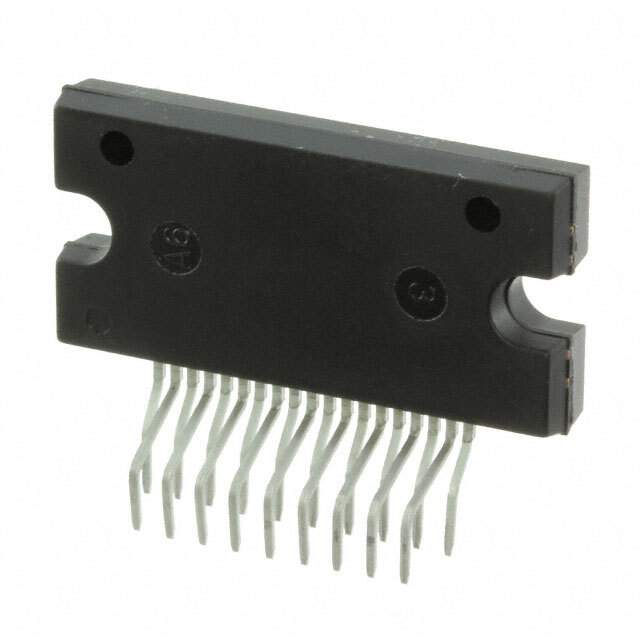

The STK672-430AN-E from ON Semiconductor is a highly-efficient, unipolar stepper motor driver IC designed to drive a two-phase bipolar stepper motor in a variety of applications. This advanced motor driver is part of ON Semiconductor's STK600 series and offers smooth and precise motor control with its built-in micro-stepping controller and high voltage capabilities.

Key Features

• Integrated Micro-Stepping Controller: The STK672-430AN-E comes with an integrated controller capable of micro-stepping, which allows for finer step resolution, resulting in smoother motor operation and higher precision positioning.
• Voltage and Current Ratings: It operates within a voltage range of 10V to 44V and can deliver an output current of up to 2.5A, making it suitable for a wide range of stepper motors.
• High-Efficiency Design: The device is designed for high efficiency, which reduces power loss and heat generation, extending the life of the motor and the driver.
• Protection Features: The STK672-430AN-E includes multiple protection features such as thermal shutdown, overcurrent protection, and under-voltage lockout, ensuring safe and reliable operation.
• Compact Package: The driver is presented in a compact 19-pin SIP (Single Inline Package) form factor, which saves space on the PCB and simplifies the design and manufacturing process.

Applications

The STK672-430AN-E is ideal for a variety of applications that require precise control of stepper motors, such as:

• Office automation machines
• Factory automation and robotics
• 3D printers
• CNC machines
• Medical equipment

Conclusion

With its combination of performance, efficiency, and protection features, the STK672-430AN-E from ON Semiconductor is a superior choice for designers and engineers looking to enhance their stepper motor applications. Its ease of integration, along with ON Semiconductor's reputation for quality and reliability, makes it a go-to solution for driving stepper motors with precision and care.
