Product Overview: NLSX4378BFCT1G

The NLSX4378BFCT1G is a highly versatile, bidirectional translating switch designed by ON Semiconductor, a leading figure in the semiconductor industry. This product is specifically engineered to facilitate voltage level translation between different logic levels, ranging from as low as 1.1V to as high as 5.5V, which makes it an essential component for multi-voltage systems.

Key Features

• Logic Level Translation: Supports bidirectional voltage level translation, which is ideal for applications that require the interfacing of peripherals or microcontrollers operating at different voltage levels.
• Wide Voltage Range: Operates over a broad voltage range, accommodating translation between 1.1V and 5.5V without the need for a direction pin.
• Low On-Resistance: Features low on-resistance (Ron) characteristics, ensuring minimal signal distortion and power loss during operation.
• Power-Down Protection: Equipped with power-down protection on all inputs and outputs, safeguarding the device against potential damage when the power is off.
• High-Speed Operation: Capable of high-speed operation, which is critical for applications that demand rapid data transfer and minimal propagation delay.
• ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuitry guards the device against static damage, enhancing its durability and reliability.

Applications

The NLSX4378BFCT1G is suitable for a wide array of applications, including but not limited to:

• Mobile Devices
• Computing Devices
• Consumer Electronics
• Networking Equipment
• Data Communication Systems

Package and Quality

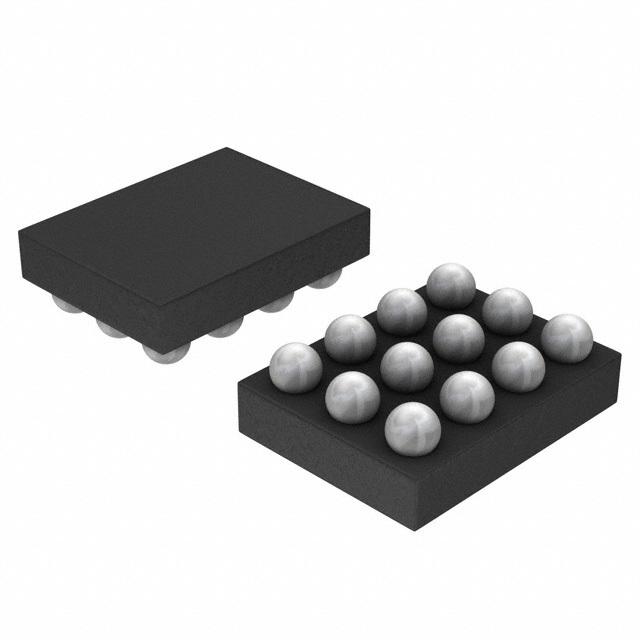

Encased in a compact, lead-free package, the NLSX4378BFCT1G is designed with a focus on space-saving and environmental considerations. ON Semiconductor ensures that this product meets rigorous quality standards, offering reliability and performance that design engineers can trust.

By integrating the NLSX4378BFCT1G into your design, you can achieve seamless communication between components with different voltage requirements, thus simplifying your multi-voltage designs and accelerating time to market.
