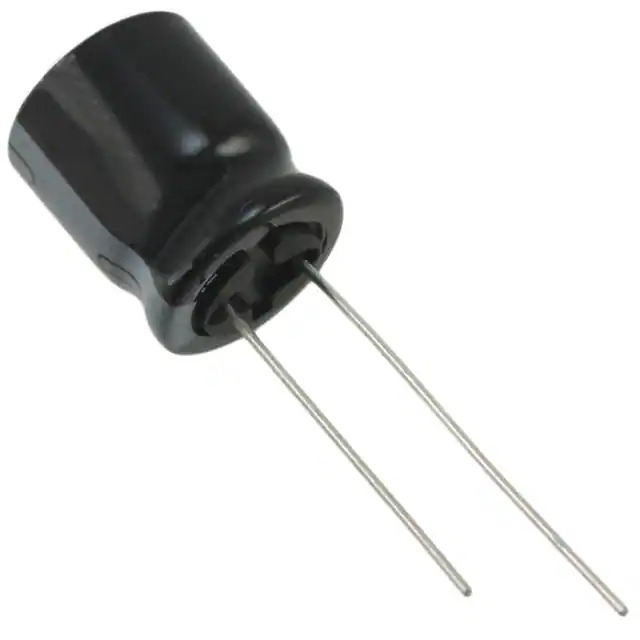

Same model may have multiple batches, images only for reference.

UHE2A820MHD6

Name: UHE2A820MHD6
Brand: Nichicon
SKU: 1357934
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UHE2A820MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 82UF 20% 100V RADIAL / 82 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHE2A820MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	82 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	368.9 mA @ 120 Hz
Impedance	230 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.591" (15.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357934-UHE2A820MHD6
Ultra Librarian 3D Model	Ultra Librarian UHE2A820MHD6 CAD Model

Description

The UHE series aluminum electrolytic capacitor from Nichicon is a high-quality component suitable for various electronic applications.

Capacitance: 82 µF
Voltage Rating: 100 V
Temperature Range: -40°C to 105°C
Tolerance: ±20%
Ripple Current @ Low Frequency: 368.9 mA @ 120 Hz
Size: 0.492" (12.50mm) diameter
Height: 0.591" (15.00mm)
Package: Radial, Can
Mounting Type: Through Hole
Lifetime: 10000 hours @ 105°C
Application: General Purpose
REACH Status: Unaffected
