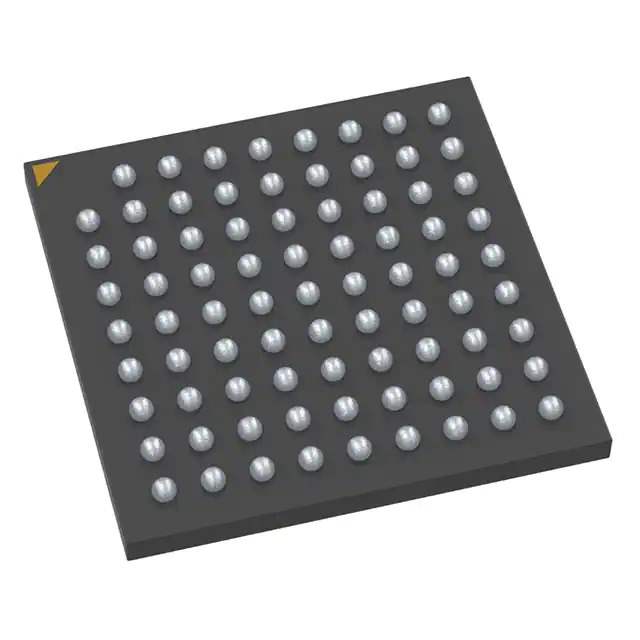

ON Semiconductor MT9M021IA3XTM-DPBR Camera Sensor

The MT9M021IA3XTM-DPBR is a high-performance digital image sensor from ON Semiconductor. It is designed to deliver exceptional image quality with a variety of features that make it ideal for a wide range of imaging applications, including surveillance, automotive, industrial, and medical imaging systems.

Key Features

• Resolution: The sensor provides a resolution of 720p (1280 x 800) with an aspect ratio of 16:10, enabling high-definition image capture.
• Pixel Size: It features a 3.75 µm pixel size, ensuring high sensitivity and low-noise performance, which is critical for capturing clear images in various lighting conditions.
• Frame Rate: The MT9M021IA3XTM-DPBR supports a high frame rate of up to 60 frames per second (fps) at full resolution, allowing for smooth video capture without motion blur.
• Shutter Type: The sensor employs an electronic rolling shutter mechanism that simplifies the design of the imaging system and reduces overall system cost.
• Dynamic Range: It boasts a wide dynamic range that helps in capturing details in both bright and dark areas of an image.
• Interface: The sensor comes with a HiSPi interface that ensures high-speed data transfer between the sensor and the image processor.

Advanced Imaging Capabilities

The MT9M021IA3XTM-DPBR is equipped with sophisticated on-chip camera functions such as automatic black level calibration, binning, and windowing that enhance the image quality and provide flexibility in image processing. The sensor's automatic exposure control and automatic gain control features ensure optimal exposure in varying lighting conditions.

Robust Design

ON Semiconductor's commitment to quality is reflected in the robust design of the MT9M021IA3XTM-DPBR sensor. It is designed to operate in harsh environments and is capable of withstanding extended temperature ranges, making it a reliable choice for outdoor and industrial applications.

Applications

The versatility of the MT9M021IA3XTM-DPBR makes it suitable for a diverse set of applications, including:

• Security and Surveillance Cameras
• Automotive Vision Systems
• Industrial Inspection
• Medical Imaging Devices
• Machine Vision Systems
