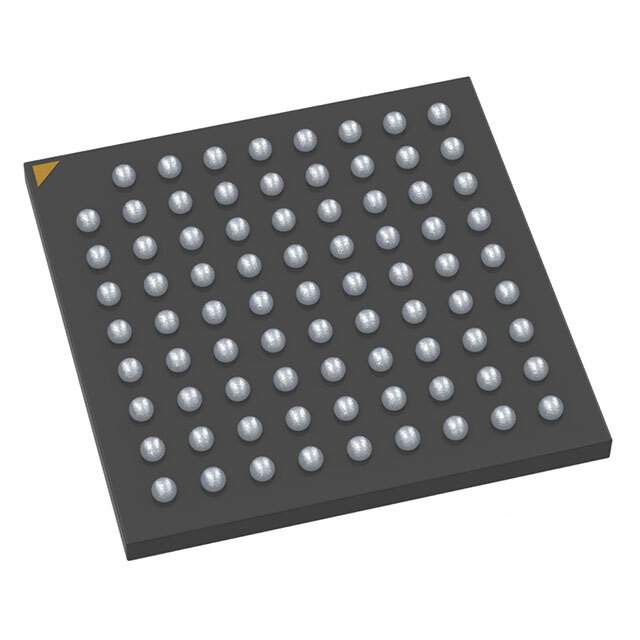

AR0134CSSC00SUEA0-DPBR1

Part No AR0134CSSC00SUEA0-DPBR1
Manufacturer ON Semiconductor
Catalog Image Sensors, Camera
Description IMAGE SENSOR 1.2MP 1/3 GS CIS / CMOS Image Sensor 1280H x 960V 3.75µm x 3.75µm 63-iBGA (9x9)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Image Sensors, Camera
Mfr onsemi
Package Tray
Type CMOS
Pixel Size 3.75µm x 3.75µm
Active Pixel Array 1280H x 960V
Frames per Second 54
Voltage - Supply 1.8V ~ 2.8V
Package / Case 63-LBGA
Supplier Device Package 63-iBGA (9x9)
Temperature Range - Operating -30°C ~ 70°C
Base Product Number AR0134
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ONSONSAR0134CSSC00SUEA0-DPBR1,2156-AR0134CSSC00SUEA0-DPBR1-OS
Standard Package 260
Win Source Part Number 1012106-AR0134CSSC00SUEA0-DPBR1
Ultra Librarian 3D Model Ultra Librarian AR0134CSSC00SUEA0-DPBR1 CAD Model

Description

The AR0134CSSC00SUEA0-DPBR1 is a cutting-edge CMOS digital image sensor from ON Semiconductor. This sensor is designed for a wide range of applications, including industrial imaging, security, surveillance, and automotive systems. With its advanced pixel technology, it delivers superior low-light performance, making it an ideal solution for environments where lighting conditions are challenging.

Key Features

  • Resolution: The AR0134CSSC00SUEA0-DPBR1 boasts a 1/3-inch optical format, providing a high-resolution output of 1.2 megapixels (1280 x 960 pixels). This resolution ensures crisp and clear images, which are essential for detailed analysis and recognition tasks.
  • Frame Rate: It offers a maximum frame rate of 45 frames per second at full resolution, enabling smooth video capture for dynamic scenes.
  • Pixel Size: The sensor features a 3.75 µm pixel size, which contributes to its excellent sensitivity and image quality.
  • Dynamic Range: With a dynamic range of 83 dB, the AR0134CSSC00SUEA0-DPBR1 can handle complex lighting conditions, capturing clear images in both bright and dark areas.
  • Shutter: The sensor incorporates a global shutter function, allowing it to capture fast-moving objects without distortion, which is crucial for accurate image analysis in industrial and automotive applications.

Performance and Durability

The AR0134CSSC00SUEA0-DPBR1 is designed to perform reliably in harsh conditions. It operates within a wide temperature range, making it suitable for outdoor and automotive environments. Additionally, the sensor's robust design ensures longevity and consistent performance over time.

Integration and Support

ON Semiconductor provides comprehensive support for the integration of the AR0134CSSC00SUEA0-DPBR1 into various platforms. Detailed documentation, reference designs, and technical support are available to assist with the implementation of this sensor into your system. This ensures a smooth design-in process and helps to reduce time-to-market for products utilizing this advanced image sensor technology.

Applications

The versatility of the AR0134CSSC00SUEA0-DPBR1 makes it suitable for a wide array of applications, including:

  • Industrial machine vision systems
  • Automotive driver assistance systems (ADAS)
  • Security and surveillance cameras
  • Unmanned aerial vehicles (UAVs)
  • Barcode scanning
