ON Semiconductor MC100EP101MNG: A High-Performance ECL Clock Driver

The MC100EP101MNG is a state-of-the-art ECL (Emitter Coupled Logic) clock driver designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-speed integrated circuit is part of the 100EP series, which is renowned for delivering exceptional performance in demanding applications. The device is specifically engineered to address the needs of clock distribution and frequency multiplication in complex digital systems.

Featuring a fully differential ECL 1:4 fanout design, the MC100EP101MNG is capable of distributing a single input clock signal to four identical outputs with minimal skew. The device operates over a wide frequency range, making it suitable for high-speed systems that require precise timing signals. The low skew characteristics ensure that the timing integrity of the clock signal is maintained across all outputs, which is crucial for maintaining data coherence in synchronous digital systems.

The MC100EP101MNG offers a differential PECL mode of operation, which allows for compatibility with Positive ECL systems. This flexibility enables the device to be used in various system designs without the need for additional level-shifting components. The device also features a VBB output, which provides a reference voltage for single-ended input conditions, further enhancing its versatility.

Constructed using ON Semiconductor's advanced high-speed bipolar process, the MC100EP101MNG exhibits excellent performance characteristics such as low propagation delay and high output current capability. This ensures reliable operation even in environments where signal integrity can be challenged by noise and interference.

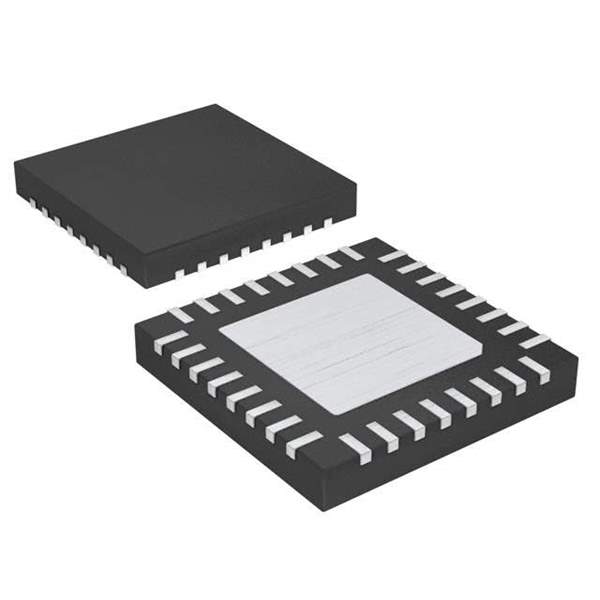

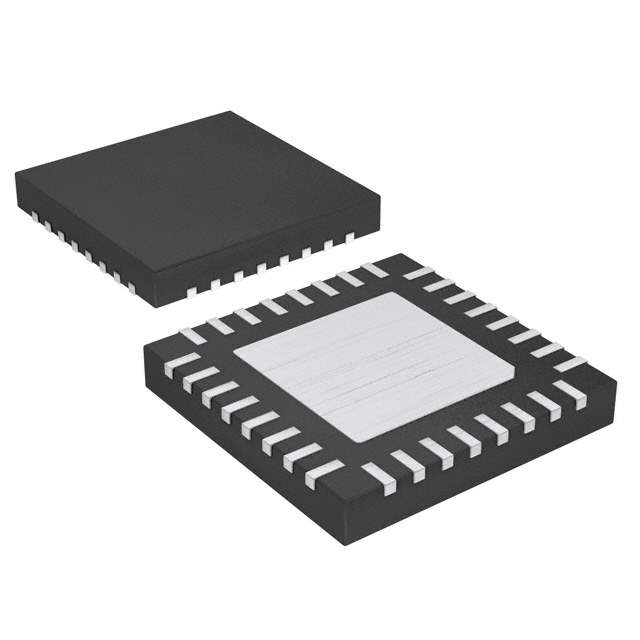

The device is housed in a compact 32-lead QFN package, which not only saves valuable board space but also offers improved thermal performance. This makes the MC100EP101MNG an ideal choice for space-constrained applications such as telecommunications, data communications, and high-performance computing.

In summary, the ON Semiconductor MC100EP101MNG is a versatile, high-performance ECL clock driver that offers designers a reliable solution for clock distribution and frequency multiplication. Its advanced features and robust design make it an excellent choice for applications that demand the highest levels of timing precision and signal integrity.
