Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 20 V
Mounting Type Surface Mount

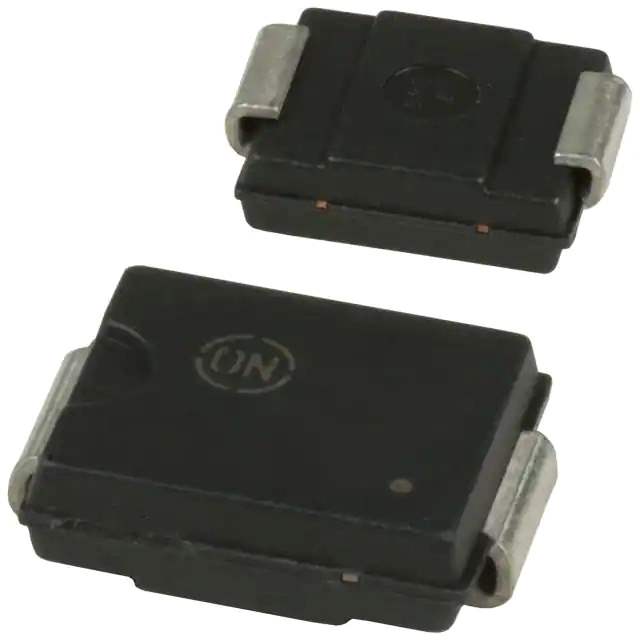

Package / Case DO-214AB, SMC
Supplier Device Package SMC
Base Product Number MBRS320
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 633824-MBRS320T3
Ultra Librarian 3D Model Ultra Librarian MBRS320T3 CAD Model

Description

The MBRS320T3 is a robust Schottky barrier rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This high-performance rectifier is engineered to offer low forward voltage drop, high surge capability, and a fast switching speed. It is widely used in applications requiring efficient power management and conversion such as in switch-mode power supplies, converters, free-wheeling diodes, and reverse battery protection.

Key Features

  • Low Power Loss/High Efficiency: The MBRS320T3 is optimized for low forward voltage drop, which minimizes power loss and improves efficiency, especially in low voltage applications.
  • High Surge Capacity: It can withstand high surge currents, making it suitable for applications that may experience surges or spikes in power.
  • Fast Switching Speed: The device's fast switching capability ensures that it can respond quickly to changing electrical conditions, making it ideal for high-frequency operations.
  • High Temperature Operation: Capable of operating at high temperatures, the MBRS320T3 is suitable for use in challenging thermal environments.
  • Surface Mount Package: The device comes in a compact surface-mount package (SMC), saving valuable board space and facilitating easier mounting on a printed circuit board.

Electrical Characteristics

With a maximum repetitive peak reverse voltage of 200V and an average rectified forward current of 3.0A at TL=130°C, the MBRS320T3 is designed to handle a significant amount of power. Additionally, it features a low forward voltage drop (typically 0.75V at 3.0A), which helps to reduce power loss and improve efficiency.

Applications

  • Power Supply Management
  • DC-to-DC Converters
  • Automotive Environment
  • Free-Wheeling Diodes
  • Reverse Battery Protection

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The MBRS320T3 is no exception, with its robust construction and adherence to stringent quality standards. This ensures reliable performance over the rectifier's lifespan, even in the most demanding conditions.
