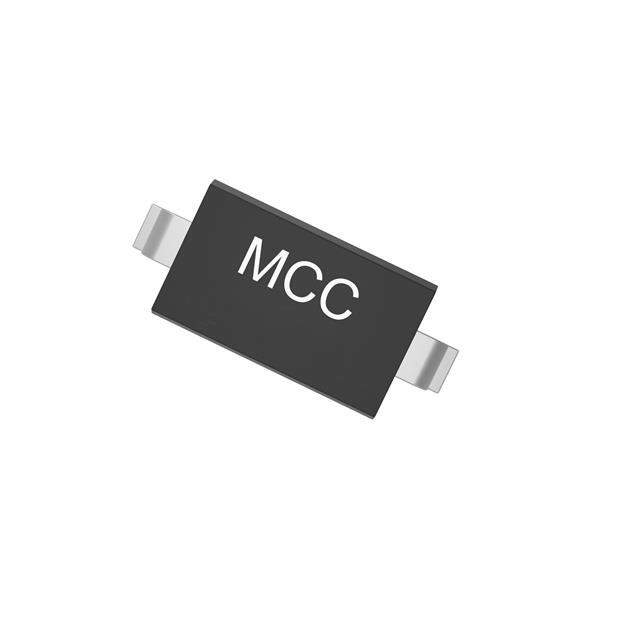

BAT46WS-TP Real Image
Same model may have multiple batches, images only for reference.

BAT46WS-TP

Part No BAT46WS-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Single
Description SMALLSIGNALSCHOTTKYDIODESOD-323 / Diode Schottky 100 V 150mA (DC) Surface Mount SOD-323
Datasheet
BAT46WS-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Micro Commercial Co
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 150mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 250 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 2 µA @ 75 V
Capacitance @ Vr, F 20pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number BAT46
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names BAT46WS-TPMSCT,BAT46WS-TPMSTR,BAT46WS-TPMSDKR
Standard Package 3,000
Win Source Part Number 1048229-BAT46WS-TP
Ultra Librarian 3D Model Ultra Librarian BAT46WS-TP CAD Model

Description

The Micro Commercial Co BAT46WS-TP is a Schottky diode that has a reverse voltage of 100V and a forward voltage of 1V @ 250mA.

  • Reverse Voltage: 100V
  • Forward Voltage: 1V @ 250mA
  • Average Rectified Current: 150mA
  • Reverse Leakage Current: 2µA @ 75V
  • Package: SC-76, SOD-323 package
  • Operating Temperature Range: -55°C to 125°C
  • Package Type: Tape and reel
  • Standard Package: 3,000
  • Ideal for: Use in rectifier circuits and power supplies.
