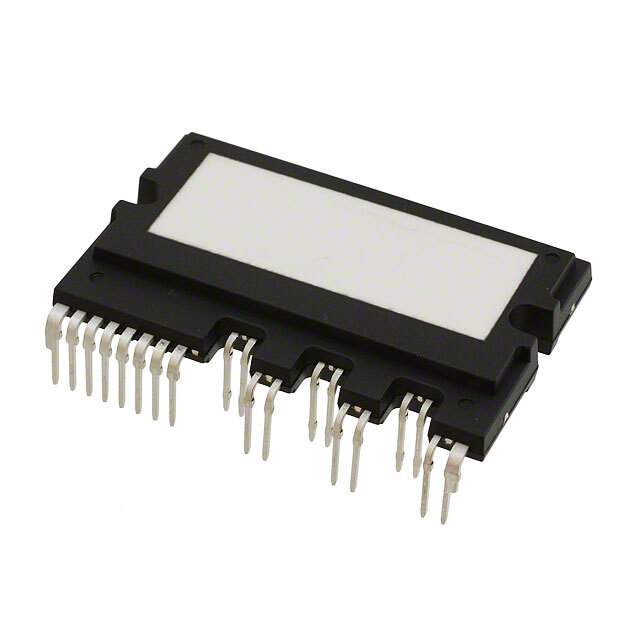

ON Semiconductor FSBB15CH60D Smart Power Module

The ON Semiconductor FSBB15CH60D is a cutting-edge Smart Power Module (SPM) designed to provide a compact and high-efficiency solution for advanced motion control applications. This intelligent power module integrates IGBTs, freewheeling diodes, and gate drivers into a single package, offering a streamlined solution for inverter-driven systems such as air conditioners, washing machines, and industrial motors.

Key Features

• Integrated Design: The FSBB15CH60D combines six IGBTs, six diodes, and a gate-drive circuit in a single module, reducing the complexity of the design and improving reliability.
• High-Voltage Capability: With a 600V rating, this module can handle high-power applications with ease, ensuring stable operation under a wide range of conditions.
• Low On-Resistance: The low on-resistance of the IGBTs ensures high efficiency, which translates to lower power losses and improved thermal performance.
• Advanced Protection Features: It includes under-voltage lockout, over-current protection, and thermal shutdown features that safeguard the module from potential damage due to abnormal operating conditions.
• Compact Footprint: The module's compact size allows for a reduction in PCB size, which is crucial for space-constrained applications.

Technical Specifications

• Collector-Emitter Voltage (Vces): 600V
• Continuous Collector Current (Ic): 15A
• Power Dissipation (Pd): Efficient thermal management due to low Rth(j-c)
• Isolation Voltage (Viso): 2500Vrms for 1 minute
• Operating Temperature Range: -40°C to +150°C

Applications

The FSBB15CH60D is ideal for a variety of applications that require precise motor control and high power efficiency. It is particularly well-suited for:

• Home appliances such as air conditioners and washing machines
• Industrial motor drives
• Fan and pump controllers
• Renewable energy systems, including solar inverters and wind turbines

By integrating multiple components into a single module, the FSBB15CH60D helps designers save time and reduce the complexity of their power management designs. ON Semiconductor's commitment to quality and performance ensures that the FSBB15CH60D Smart Power Module is a reliable choice for your advanced electronic applications.
