Same model may have multiple batches, images only for reference.

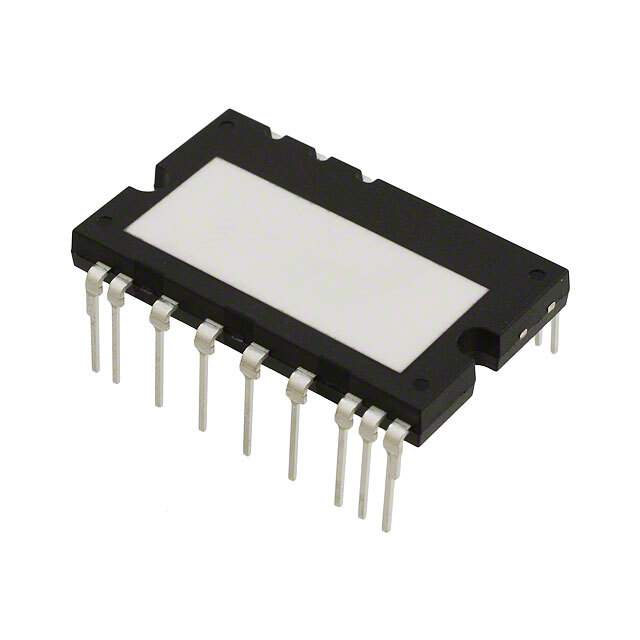

FNB43060T2 Real Image
Same model may have multiple batches, images only for reference.

FNB43060T2

Part No FNB43060T2
Manufacturer Fairchild/ON Semiconductor
Catalog Power Drivers - Modules
Description Motion SPMR 45 Series
Datasheet
FNB43060T2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Series Motion SPM 45
Type IGBT
Configuration 3 Phase
Current 30A
Voltage 600V
Voltage - Isolation 2000Vrms
Package 26-PowerDIP Module (1.024", 26.00mm)
Win Source Part Number 1174926-FNB43060T2
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 72
Family Name FNB43060T2
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian FNB43060T2 CAD Model

Description

Fairchild/ON Semiconductor's FNB43060T2 is a 3-phase IGBT module.

  • Manufacturer: Fairchild/ON Semiconductor
  • Type: 3-Phase IGBT Module
  • Voltage Rating: 600V
  • Current Rating: 30A
  • Voltage Isolation: 2000Vrms
  • Package: 26-PowerDIP Module (1.024", 26.00mm)
  • Series: Motion SPM 45
  • Halogen-Free: Compliant
  • Ideal for: Motor drives, HVAC systems, and power supplies
