Same model may have multiple batches, images only for reference.

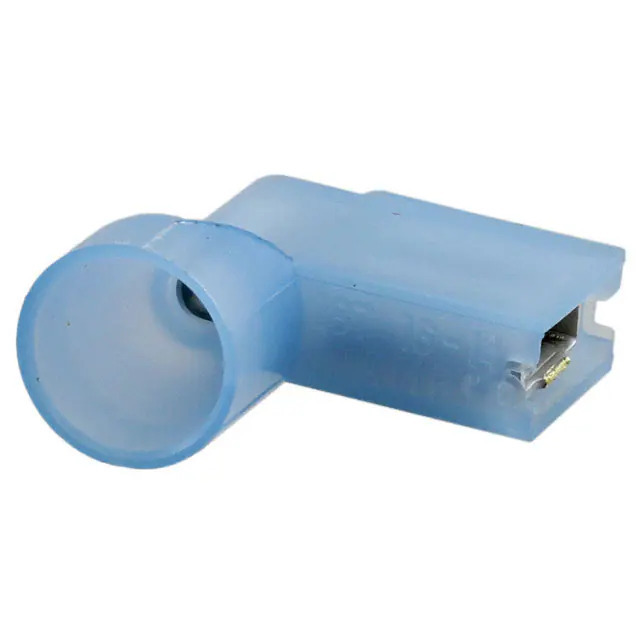

3-520997-2 TE Connectivity
Same model may have multiple batches, images only for reference.

3-520997-2

Part No 3-520997-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.260" (6.60mm)
Base Product Number 520997
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364987-3-520997-2
Ultra Librarian 3D Model Ultra Librarian 3-520997-2 CAD Model

Description

The 1364987-3-520997-2 quick disconnect connector is from the Ultra-Fast series by TE Connectivity AMP Connectors.

  • Terminal Type: Female
  • Terminal Angle: Angled 90-Degree Flag
  • Tab Width: 0.187 inches (4.75mm)
  • Tab Thickness: 0.020 inches (0.51mm)
  • Insulation Diameter: 0.260 inches (6.60mm)
  • Insulation: Fully Insulated
  • Wire Gauge: 14-16 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Termination: Crimp
  • Mounting Type: Free-Hanging (In-Line) and Right-Angle
  • Color: Blue
