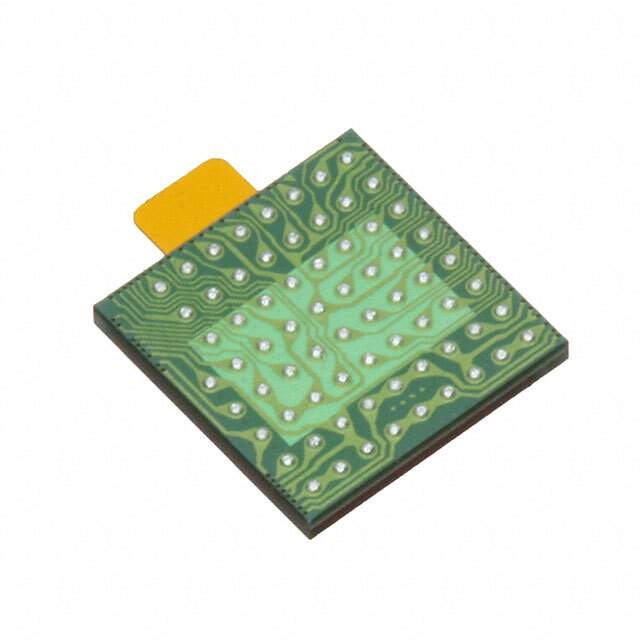

The AR0144CSSC20SUKA0-CRBR is a cutting-edge CMOS digital image sensor from ON Semiconductor, designed to deliver superior image quality and performance for a wide range of applications. This sensor is part of ON Semiconductor's renowned AR series, which is known for its high resolution, low-light capability, and advanced imaging features. The AR0144 is an ideal choice for industrial, automotive, surveillance, and consumer electronics applications where clear and detailed images are crucial.

Key Features

• Resolution: The sensor provides a resolution of 1.0 Megapixel, which translates to 1280 x 800 pixels. This enables the capture of high-detail images suitable for various applications.
• Pixel Size: With a pixel size of 3.0 µm x 3.0 µm, the AR0144 ensures excellent sensitivity and image quality, even in environments with limited lighting.
• Frame Rate: It offers a high frame rate of up to 60 frames per second (fps) at full resolution, making it suitable for capturing fast-moving objects without motion blur.
• Optical Format: The 1/4-inch optical format of the sensor is a standard size that allows for compatibility with a wide range of lenses and optical systems.
• Shutter Type: The sensor features a global shutter, which captures the entire image simultaneously, as opposed to a rolling shutter. This is critical for avoiding distortion when imaging fast-moving subjects or when the camera itself is in motion.
• Interface: It includes a high-speed MIPI CSI-2 serial interface, which facilitates easy integration with modern processors and allows for high-bandwidth data transfer.

Advanced Imaging Capabilities

The AR0144 is equipped with advanced imaging processing features, including automatic exposure control, automatic gain control, automatic white balance, and a programmable region of interest. These features enable the sensor to deliver optimal image quality in various lighting conditions and applications. Moreover, the sensor supports multiple color filter array options, providing flexibility in achieving the desired color reproduction in the final image.

Applications

The versatility of the AR0144 makes it an excellent choice for a multitude of applications. It is particularly well-suited for:

• Industrial machine vision systems
• Automotive vision systems, including ADAS (Advanced Driver Assistance Systems)
• Security and surveillance cameras
• Drone and UAV camera systems
• Consumer electronics, such as action cameras and webcams
