The 2SK3748 is a high-performance N-Channel Silicon MOSFET produced by ON Semiconductor, a leading supplier in the semiconductor industry. This MOSFET is designed to meet the stringent requirements of modern electronic circuits, offering high-speed switching, low on-resistance, and a robust thermal performance. It is commonly used in power management applications, including DC/DC converters, power supplies, and motor control circuits.

Key Features

• Device Type: N-Channel MOSFET
• Drain-to-Source Voltage (VDSS): 500V, providing a high breakdown voltage suitable for various applications.
• Continuous Drain Current (ID): 12A, ensuring reliable operation under high current conditions.
• Low On-Resistance (RDS(on)): This feature minimizes conduction losses and improves overall efficiency.
• High-Speed Switching: The device is optimized for fast switching applications, reducing switching losses.
• Gate Charge (Qg): Low, which enhances the switching performance and reduces driving power requirements.

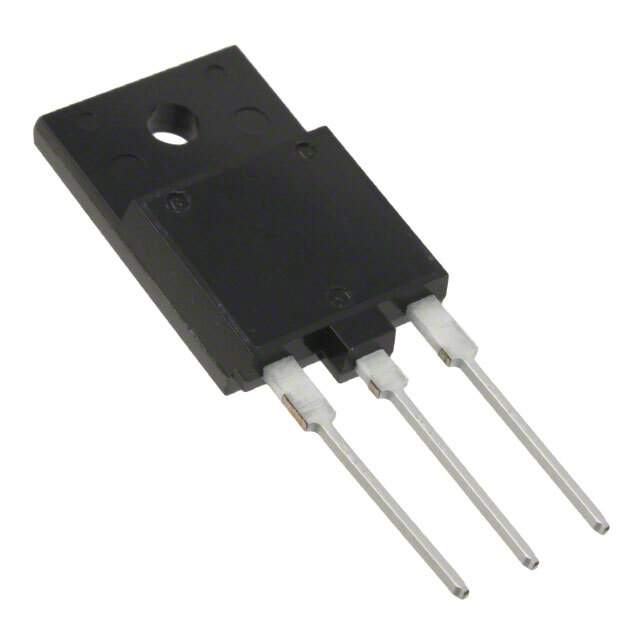

• Package: TO-220SIS, a widely used and reliable package that facilitates heat dissipation and easy mounting.

Applications

The 2SK3748 is versatile and can be used in a wide array of applications due to its high voltage and current capabilities. Some common applications include:

• Switch Mode Power Supplies (SMPS)
• DC-to-DC converters
• Power inverters
• Motor drives and controllers
• Lighting systems

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The 2SK3748 MOSFET is manufactured with state-of-the-art technology and rigorous quality control processes to ensure reliability and performance in demanding environments. With its superior electrical characteristics and thermal performance, the 2SK3748 is an excellent choice for designers looking for a robust MOSFET solution.

For detailed specifications, application notes, and additional resources, please visit the ON Semiconductor website or contact their support team for technical assistance.
