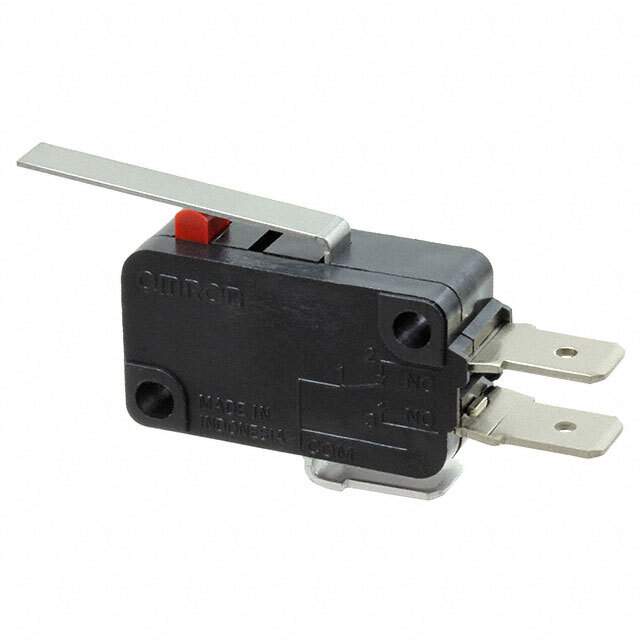

The V-1625-1C25(R) is a limit switch from Omron Electronics Inc-EMC Div with a SPDT circuit and On-Mom switch function.

• Circuit: SPDT
• Switch Function: On-Mom
• Voltage Rating (AC): 250 V AC
• Voltage Rating (DC): 125 V DC
• Current Rating (AC): 16A
• Current Rating (DC): 100mA
• Actuator Type: Lever, Straight
• Electrical Life: 100,000 Cycles
• Mechanical Life: 50,000,000 Cycles
• Termination Style: Quick Connect 0.187" (4.7mm)
• Ingress Protection: IP40
• Pretravel: 0.157" (4.0mm)
• Differential Travel: 0.060" (1.5mm)
• Overtravel: 0.062" (1.6mm)
• Operating Force: 125gf
• Release Force: 14gf
• Operating Position: 0.598" (15.2mm)
• Mounting Type: Chassis Mount
• Temperature Range: -25°C ~ 105°C
• Alternative Parts: V-1625-1C25(R)V-1625-1C25-R, V-1625-1C25R, V16251C25(R), and V16251C25R
