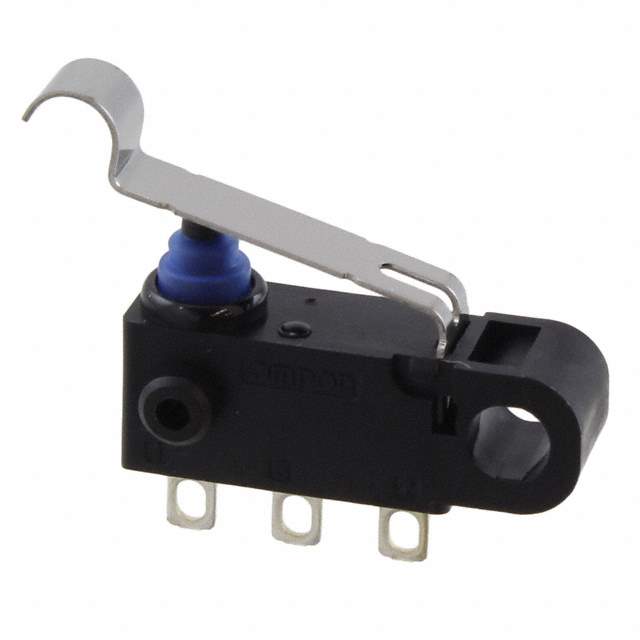

D2HW-C271H Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 183gf
Release Force 20gf
Differential Travel 0.020" (0.5mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.425" (10.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HW-C271H-ND,D2HWC271H,SW1995
Standard Package 500
Win Source Part Number 1177971-D2HW-C271H
Ultra Librarian 3D Model Ultra Librarian D2HW-C271H CAD Model

Description

The D2HW-C271H is a lever and simulated roller actuator type limit switch from Omron Electronics Inc-EMC Div.

  • Electrical Life: 100,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Package Quantity: 500 pieces
  • Termination Style: Solder Lug
  • Ingress Protection: IP67
  • Operating Temperature Range: -40°C to 85°C
  • Release Force: 20gf
  • Operating Force: 183gf
