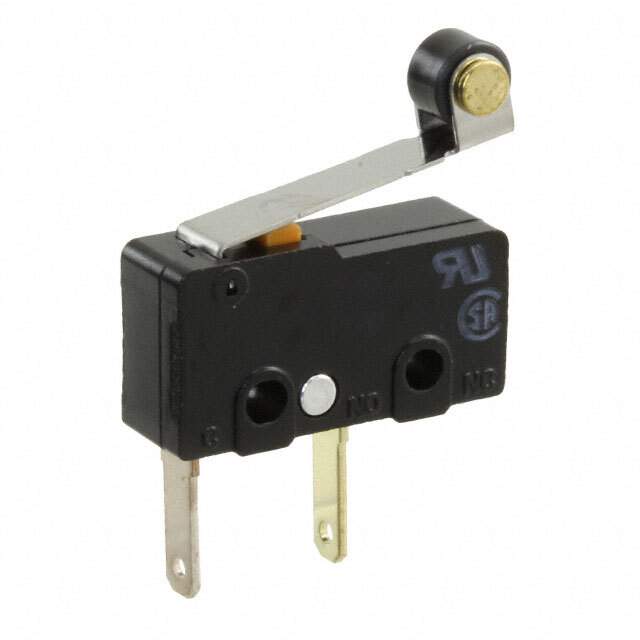

SS-5GL2-3T Real Image
Same model may have multiple batches, images only for reference.

SS-5GL2-3T

Part No SS-5GL2-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 5A 125V / Switch SPST-NO Chassis Mount
Datasheet
SS-5GL2-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names -SS-5GL2-3T,SS5GL23T,Z4583,SS-5GL2-3T,SS5GL23TBYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233513-SS-5GL2-3T
Ultra Librarian 3D Model Ultra Librarian SS-5GL2-3T CAD Model

Description

The SS-5GL2-3T is a SPST-NO (Off-Mom) lever roller limit switch from Omron Electronics Inc-EMC Div.

  • Termination Style: Quick Connect, 0.110 inches (2.8mm)
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC
  • Current Rating: 5A (AC)
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Release Force: 6.118gf
  • Operating Force: 50gf
  • Differential Travel: 0.031 inches (0.8mm)
  • Overtravel: 0.047 inches (1.2mm)
  • Operating Position: 0.571 inches (14.5mm)
  • Temperature Range: -25°C to 85°C
  • Mounting: Chassis Mounted
  • Standard Package: 500
