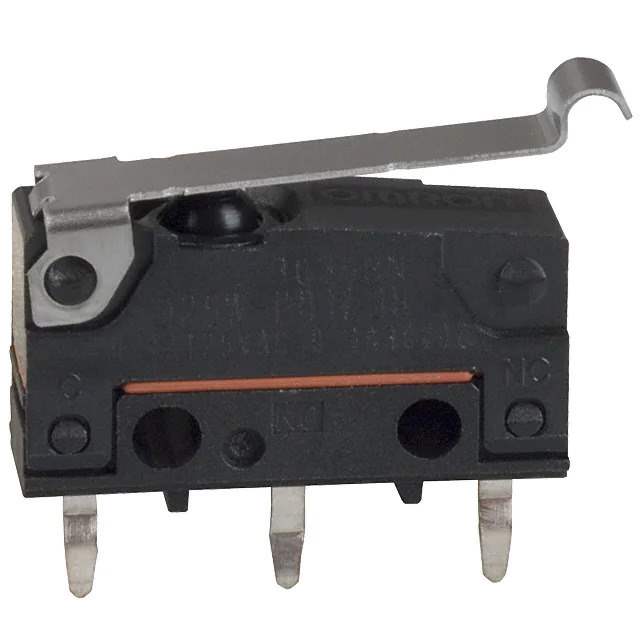

D2SW-P01L3D

Part No D2SW-P01L3D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole
Datasheet
D2SW-P01L3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2SW-P
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 61gf
Release Force 5.099gf
Operating Position 0.420" (10.7mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.030" (0.76mm)
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2S
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583464-D2SW-P01L3D
Ultra Librarian 3D Model Ultra Librarian D2SW-P01L3D CAD Model

Description

The D2SW-P01L3D is a limit switch from Omron.

  • Series: D2SW-P
  • Termination Style: PC Pin
  • Ingress Protection: IP67
  • Voltage Rating: 125V AC, 30V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with Simulated Roller
  • Electrical Life: 200,000 Cycles
  • Mechanical Life: 1,000,000 Cycles
  • Operating Force: 61gf
  • Release Force: 5.099gf
  • Pretravel: 0.031" (0.8mm)
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.030" (0.76mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting: Through Hole
  • Operating Temperature Range: -20°C to 70°C
