Same model may have multiple batches, images only for reference.

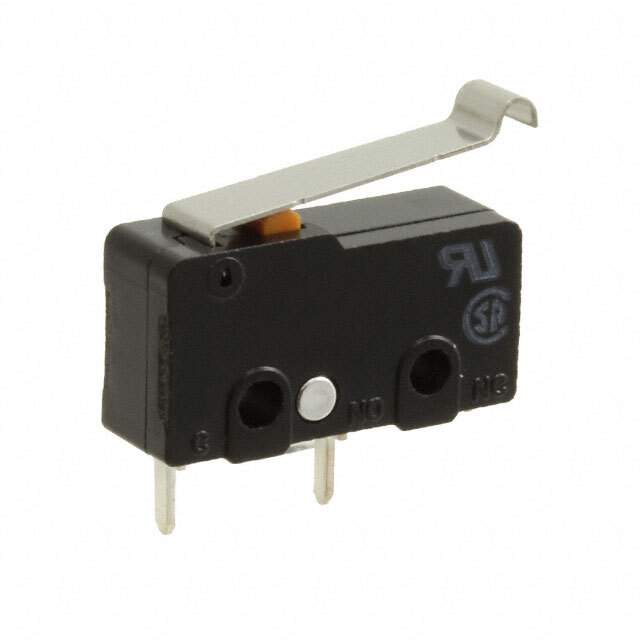

SS-10GL13-3D Real Image
Same model may have multiple batches, images only for reference.

SS-10GL13-3D

Part No SS-10GL13-3D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 10A 250V / Switch SPST-NO Through Hole
Datasheet
SS-10GL13-3D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Lever, Simulated Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.040" (1.0mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS10GL133D,-SS-10GL13-3D,SS10GL133DBYOMI,Z5063
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233517-SS-10GL13-3D
Ultra Librarian 3D Model Ultra Librarian SS-10GL13-3D CAD Model

Description

The Omron Electronics Inc-EMC Div SS-10GL13-3D is a high-quality electronic component designed for use in switches.

  • Series: SS
  • Circuit: SPST-NO
  • Mounting Type: Through-Hole
  • Temperature Range: -25°C to 85°C
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 50,000 cycles
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Actuator Type: Lever, Simulated Roller
  • Ingress Protection: IP40
