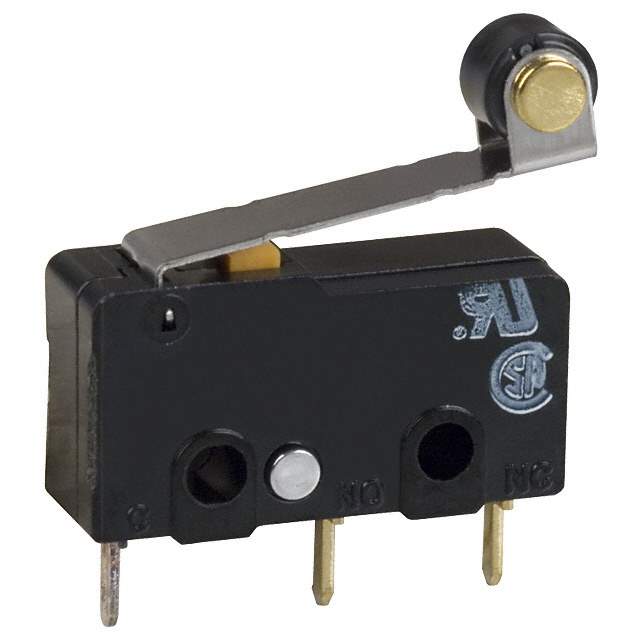

SS-01GL2-ED Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.571" (14.5mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GL2-ED,Z4550,SS01GL2ED,SS01GL2EDBYOMI,-SS-01GL2-ED
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233583-SS-01GL2-ED
Ultra Librarian 3D Model Ultra Librarian SS-01GL2-ED CAD Model

Description

The SS-01GL2-ED is a SPDT lever roller limit switch from Omron Electronics Inc-EMC Div.

  • Operating Force: 8.158gf
  • Electrical Life: Up to 200,000 cycles
  • Differential Travel: 0.031"
  • Overtravel: 0.047"
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
