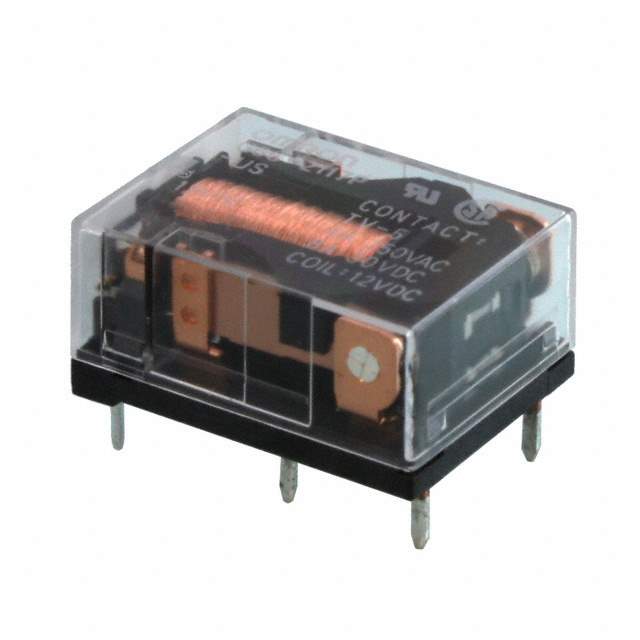

The Omron G6C-2117P-US-DC12 is a compact power relay designed for switching moderate current loads. This relay features a 12VDC coil and is known for its reliable performance in various applications requiring dependable switching capabilities.

Applications

• Home Appliances: Used in appliances for switching power to motors, heating elements, and other components.
• Office Equipment: Found in printers, copiers, and other office equipment for controlling power circuits.
• Industrial Control Systems: Implemented in control panels and systems for switching various loads.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems for controlling fans, compressors, and pumps.
• Security Systems: Employed in security systems for switching alarm circuits and other devices.

Features

• Compact Size: Allows for easy integration into space-constrained applications.
• 12VDC Coil: Compatible with standard 12VDC control circuits.
• High Switching Capacity: Capable of switching moderate current loads.
• Long Life: Designed for reliable performance over an extended operational life.
• Sealed Construction: Provides protection against dust and other contaminants.

Benefits

• Reliable Switching: Ensures consistent and dependable performance in various applications.
• Durable Design: Built to withstand demanding operating conditions.
• Easy to Integrate: Simple to incorporate into existing systems and designs.
• Cost-Effective Solution: Offers a competitive price point for power switching applications.
• Versatile Application: Suitable for a wide range of uses across different industries.

Technical Specifications

The G6C-2117P-US-DC12 typically has a contact rating of 5A at 250VAC. The coil resistance, operate time, and release time are specified in the Omron datasheet. It is designed for PCB mounting. Insulation voltage and other safety specifications are also detailed in the datasheet.
