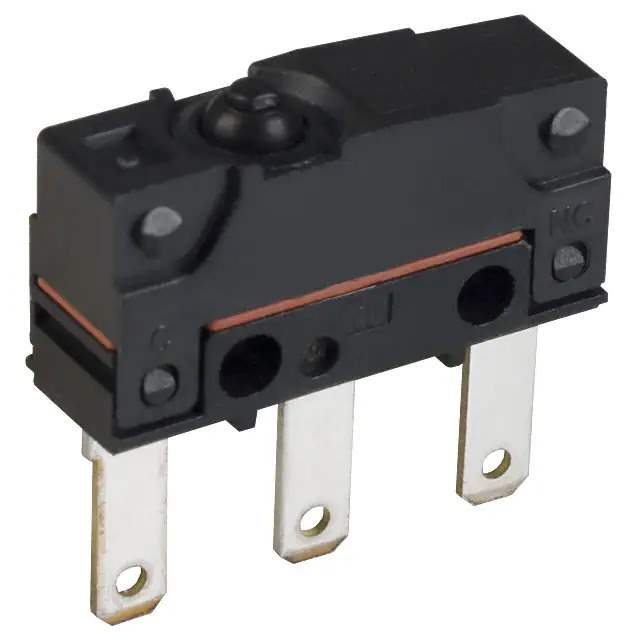

D2SW-P01T Real Image
Same model may have multiple batches, images only for reference.

D2SW-P01T

Part No D2SW-P01T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
D2SW-P01T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D2SW-P
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 183gf
Release Force 20gf
Operating Position 0.330" (8.4mm)
Pretravel 0.024" (0.6mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2S
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 583465-D2SW-P01T
Ultra Librarian 3D Model Ultra Librarian D2SW-P01T CAD Model

Description

The D2SW-P01T is a limit switch from Omron's D2SW-P series.

  • Termination Style: Quick Connect
  • Termination Size: 0.110" (2.8mm)
  • Ingress Protection: IP67
  • Voltage Rating AC: 125V AC
  • Voltage Rating DC: 30V DC
  • Current Rating: 100mA
  • Switch Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Pin Plunger
  • Operating Force: 183gf
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Mounting: Chassis Mount
  • Temperature Range: -20°C to 70°C
  • Status: Active
