Products specifications

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GLPDBYOMZ,2266-SS-01GLPD,SW782,SS01GLPD,SS-01GLPD BY OMZ
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233424-SS-01GLPD
Ultra Librarian 3D Model Ultra Librarian SS-01GLPD CAD Model

Description

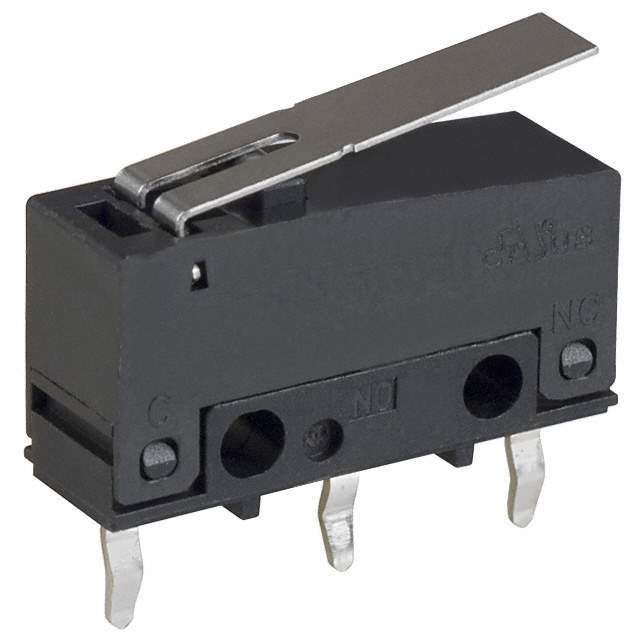

The Omron SS-01GLPD limit switch is a versatile switch that can be used in a variety of applications.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Voltage Rating: 125V AC, 30V DC
  • Mounting: Through Hole
  • Ingress Protection: IP40
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 200,000 cycles
