D2SW-3L1M Omron
Same model may have multiple batches, images only for reference.

D2SW-3L1M

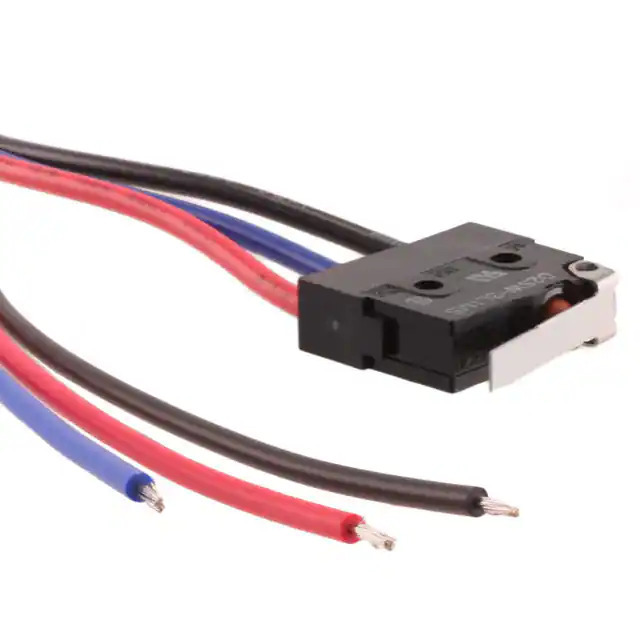

Part No D2SW-3L1M
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2SW
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Operating Force 60gf
Release Force 6.118gf
Operating Position 0.345" (8.8mm)
Pretravel -
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 5,000,000 Cycles
Base Product Number D2S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1376172-D2SW-3L1M
Ultra Librarian 3D Model Ultra Librarian D2SW-3L1M CAD Model

Description

The D2SW-3L1M is a limit switch from Omron Electronics Inc-EMC Div.

  • Series: D2SW
  • Current Rating: 3A (AC/DC)
  • Switch Function: On-Mom
  • Voltage Rating: 125V AC and 30V DC
  • Actuator Type: Lever, Straight
  • Termination Style: Wire Leads
  • Ingress Protection: IP67
  • Mechanical Life: 5,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Force: 60gf
  • Release Force: 6.118gf
  • Operating Position: 0.345" (8.8mm)
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.040" (1.0mm)
  • Mounting: Chassis Mount
