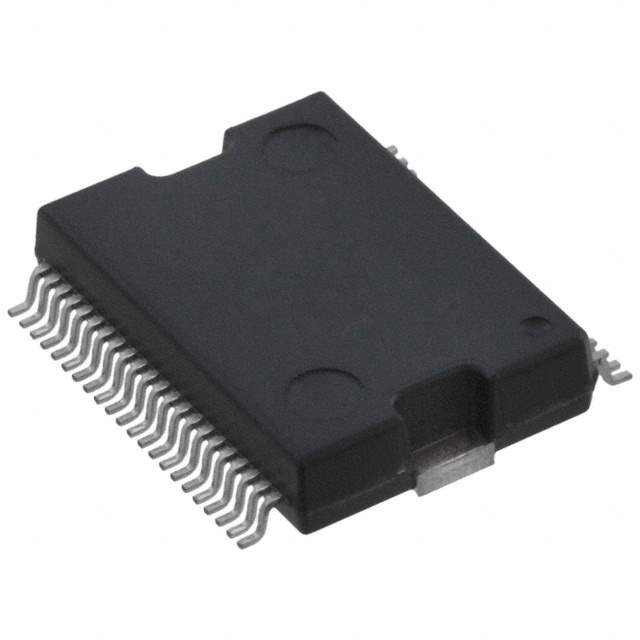

MC33932VW

Part No MC33932VW
Manufacturer NXP / Nexperia
Catalog PMIC - Motor Drivers, Controllers
Description 5.0 A Throttle Control H-Bridge | IC MOTOR DRIVER 5V-28V 44HSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology CMOS
Applications Automotive
Output Current 5A
Supply Voltage (V) 5V ~ 28V
Load Voltage (V) 5V ~ 28V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package 44-HSOP
Family Part Number MC33932
Manufacturer Pack Quantity 30
MSL Level 3 (168 Hours)
Win Source Part Number 1218519-MC33932VW
Manufacturer Homepage www.freescale.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC33932VW CAD Model

Description

The MC33932VW from NXP Semiconductors is a versatile dual H-Bridge motor driver that is designed to handle substantial current loads and is ideal for driving DC motors, stepper motors, relay coils, and other inductive loads. This high-performance device is capable of delivering up to 5A of continuous current per motor channel and up to 8A in peak scenarios, making it an excellent choice for a wide range of applications in the automotive and industrial sectors.

Featuring a wide operating voltage range from 5V to 28V, the MC33932VW provides flexibility for various power supply configurations. Its integrated charge pump ensures gate drive for the high-side MOSFETs, allowing for 100% duty cycle operation. This feature is particularly useful for applications that require extended periods of motor operation without the need for a break to cool down.

The device includes multiple protection features such as over-current shutdown, over-temperature shutdown, and under-voltage disable function, ensuring the longevity and reliability of both the motor driver and the system it controls. These safety features help to prevent damage to the MC33932VW during abnormal conditions such as motor stall or short circuits.

For precise control, the MC33932VW offers a current sense output proportional to the motor current, which allows for real-time monitoring and feedback control systems. The motor driver's inputs are compatible with 3.3V and 5V logic levels, enabling easy interfacing with a wide range of microcontrollers and other control circuitries.

The MC33932VW comes in a compact 54-pin HSSOP package, which is suitable for space-constrained applications while still providing excellent thermal performance. With its robust design and comprehensive feature set, the MC33932VW is an excellent choice for engineers and designers looking to build reliable and efficient motor control systems.
