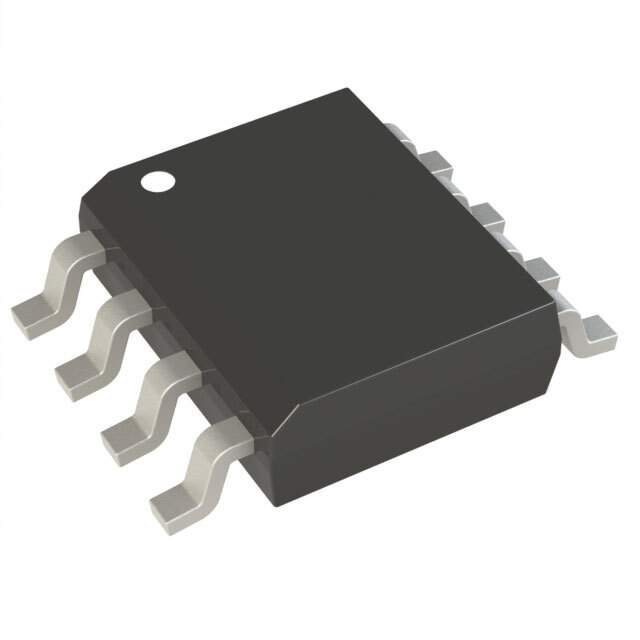

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Vishay Siliconix
Package Bulk
Product Status Obsolete
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC, Voice Coil Motor
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications General Purpose
Current - Output 1A
Voltage - Supply 3.8V ~ 13.2V
Voltage - Load 3.8V ~ 13.2V
Temperature Range - Operating 0°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number SI9986
Other Names SI9986CYE3
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253306-SI9986CY-E3
Ultra Librarian 3D Model Ultra Librarian SI9986CY-E3 CAD Model

Description

The Vishay Siliconix electronic component is an integrated circuit with a Power MOSFET technology.

  • Features: Fully integrated driver with control and power stages
  • Output Configuration: Half Bridge (2)
  • Motor Types: Bipolar stepper motors and brushed DC and voice coil motors
  • Current Output: 1A
  • Voltage Load: 3.8V to 13.2V
  • Package/Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Operating Temperature: 0°C to 150°C (TJ)
