Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology CMOS
Applications General Purpose
Output Current 5A
Supply Voltage (V) 5V ~ 40V
Load Voltage (V) 5V ~ 40V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style SMD
Manufacturer Package 20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package 20-HSOP
Family Part Number MC33886
Manufacturer Pack Quantity 30
MSL Level 3 (168 Hours)
Win Source Part Number 1218498-MC33886PVW
Manufacturer Homepage www.freescale.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Motor Drive & Control, Consumer Electronics, Communications & Networking, Industrial
Ultra Librarian 3D Model Ultra Librarian MC33886PVW CAD Model

Description

NXP MC33886PVW H-Bridge Driver

The NXP MC33886PVW is a monolithic H-Bridge Power IC designed primarily for automotive and industrial motion control applications. This versatile driver is capable of operating at high voltages and currents, making it an ideal choice for managing DC motors. The MC33886PVW allows for direct control of a DC motor in forward, reverse, brake, and high-impedance states, providing flexibility and precision in motor management.

With an operating voltage range from 5V to 28V and the ability to deliver a continuous current of up to 5A with peak currents up to 10A (limited by thermal constraints), this IC can handle a wide array of applications. The inclusion of integrated charge pump circuits enables the MC33886PVW to maintain gate drive supply voltage, ensuring consistent and reliable operation even during low supply conditions.

The device features robust protection mechanisms, including over-current limiting, thermal shutdown, and under-voltage shutdown. These safety features not only protect the IC from damage but also ensure the longevity and reliability of the connected motor and overall system. Additionally, the MC33886PVW provides a current feedback signal that can be used for precise control of the motor current or for diagnostic purposes, enhancing the functionality of the system it is integrated into.

For ease of interfacing with microcontrollers or other control units, the MC33886PVW includes logic level inputs. It also offers a Fault Status output, which provides immediate feedback in the event of an under-voltage, over-current, or thermal shutdown condition, allowing for prompt system response to potential issues.

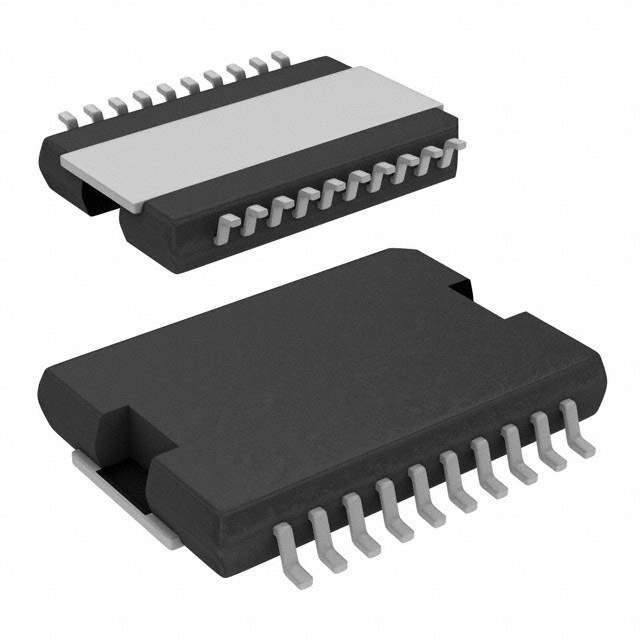

The MC33886PVW comes in a compact 20-lead HSSOP package with exposed thermal pad, which aids in heat dissipation during operation. Its robust design and comprehensive feature set make it a reliable and efficient solution for driving DC motors in a variety of applications, from vehicle power steering and HVAC systems to industrial automation and robotics.

Overall, the NXP MC33886PVW H-Bridge Driver is a high-performance, feature-rich solution that offers designers a compact, efficient, and protective way to control DC motors in their automotive and industrial applications.
