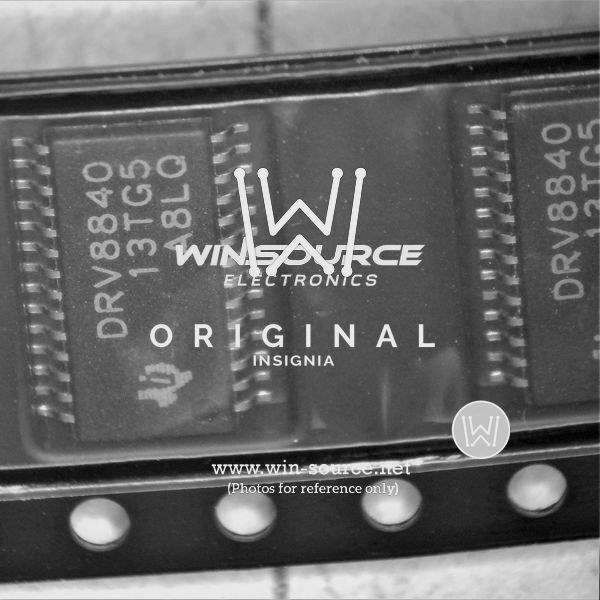

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Applications General Purpose
Output Current 3.5A
Supply Voltage - Operating 8.2 V to 45 V
Voltage - Load 8.2 V to 45 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 28-HTSSOP
Win Source Part Number 142719-DRV8840PWP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DRV8840PWP CAD Model

Description

DRV8840PWP Full-Bridge DC Motor Driver

The DRV8840PWP is a versatile full-bridge DC motor driver that integrates all necessary circuitry to drive a single DC motor with a continuous current up to 5A. Perfect for demanding applications, this component features heatsink capabilities for thermal control in high-power environments.

  • Home automation
  • Cash dispensers
  • Electric wheelchairs

Features and Benefits

  • Wide supply voltage: 8V to 52V
  • Advanced PWM control for energy efficiency
  • Built-in overcurrent, overtemperature, and undervoltage protection

The DRV8840PWP's robust construction and wide operating voltage make it well-suited for a variety of motor-driven systems requiring high efficiency and reliability.
