Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr NXP USA Inc.
Package Tray
Core Processor ARM® Cortex®-M33
Core Size 32-Bit Single-Core
Speed 150MHz
Connectivity CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART
Peripherals DMA, PWM, WDT
Number of I/O 39
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
RAM Size 128K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 13x16b; D/A 1x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 64-TQFP Exposed Pad
Supplier Device Package 64-HTQFP (10x10)
Base Product Number LPC5536
Standard Package 800
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1341230-LPC5536JBD64K
Ultra Librarian 3D Model Ultra Librarian LPC5536JBD64K CAD Model

Description

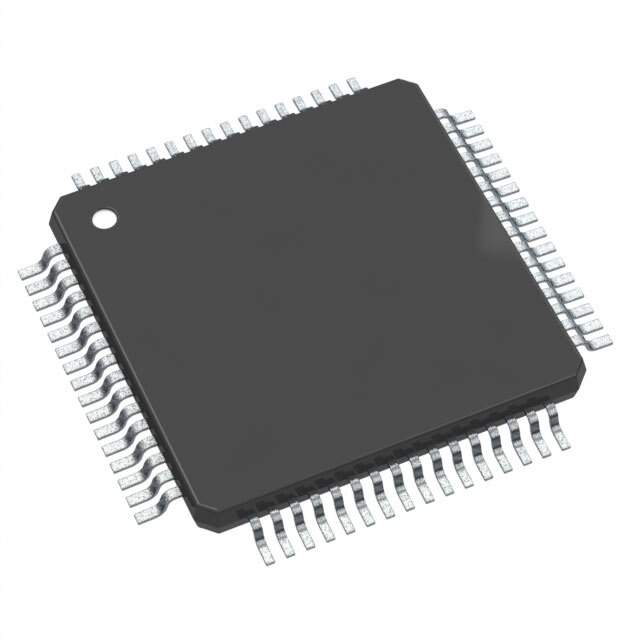

NXP LPC5536JBD64K Microcontroller

The NXP LPC5536JBD64K is a high-performance microcontroller unit (MCU) designed for a wide range of industrial, consumer, and automotive applications. As part of the LPC5500 series, this MCU is built on the Arm Cortex-M33 technology, integrating a powerful combination of features that deliver efficiency, security, and functionality.

This microcontroller comes in a compact BGA64 package and is equipped with a 150 MHz Arm Cortex-M33 core, offering a balance between performance and power consumption. The LPC5536JBD64K also includes an advanced set of peripherals and an on-chip memory configuration of 256KB Flash and 32KB RAM, providing ample space for complex applications and software stacks.

Key Features:

  • High-Efficiency Core: The Arm Cortex-M33 core with its 150 MHz clock speed provides the computational power required for demanding applications while maintaining energy efficiency.
  • Generous Memory: With 256KB of Flash memory and 32KB of RAM, developers have enough resources to implement intricate programs without the need for external memory components.
  • Advanced Security: The inclusion of a hardware-based TrustZone for Armv8-M helps in securing applications against software attacks and ensures safe operation in critical systems.
  • Robust Peripherals: A rich set of peripherals, including multiple serial interfaces, ADCs, DACs, and timers, provides versatility in connecting and controlling a wide array of external devices.
  • Flexible Power Management: The MCU supports multiple power modes, enabling energy-saving strategies that are vital for battery-powered or energy-sensitive applications.
  • Easy Integration: The BGA64 package allows for a small PCB footprint and easy integration into space-constrained designs.

The LPC5536JBD64K is supported by the extensive NXP software and hardware development ecosystem, which includes development boards, software libraries, and real-time operating system (RTOS) integrations. This support facilitates rapid development and prototyping, helping to accelerate time-to-market for a variety of products.

Whether it's for IoT devices, edge computing, or complex control systems, the NXP LPC5536JBD64K stands as a reliable and feature-rich choice for designers looking to leverage the power of modern MCU technology.
