NXP LPC1788FBD208,551 Microcontroller

The NXP LPC1788FBD208,551 is a high-performance microcontroller that belongs to the LPC1700 series, which is designed for embedded applications requiring a high level of integration and low power consumption. Built on an ARM Cortex-M3 processor core, this microcontroller is ideal for a wide range of industrial, medical, and consumer applications where advanced peripherals, a sophisticated user interface, and high-speed communication are required.

Key Features:

• Core: ARM Cortex-M3 processor, running at frequencies of up to 120 MHz.
• Memory: Includes 512 KB of flash memory and 96 KB of SRAM, providing ample space for complex applications and data storage.
• Advanced Peripherals: Features a wide range of peripherals including Ethernet, USB 2.0 Host/OTG/Device, CAN, and an 8-channel 12-bit ADC.
• Graphic LCD Controller: Comes with an integrated LCD controller supporting both STN and TFT displays, making it suitable for graphic-intensive applications.
• Connectivity: Offers multiple serial interfaces such as UART, I2C, SPI, and I2S for easy connection to other components and systems.
• Timer Functions: Equipped with multiple timers, including a PWM unit for motor control and other time-sensitive tasks.

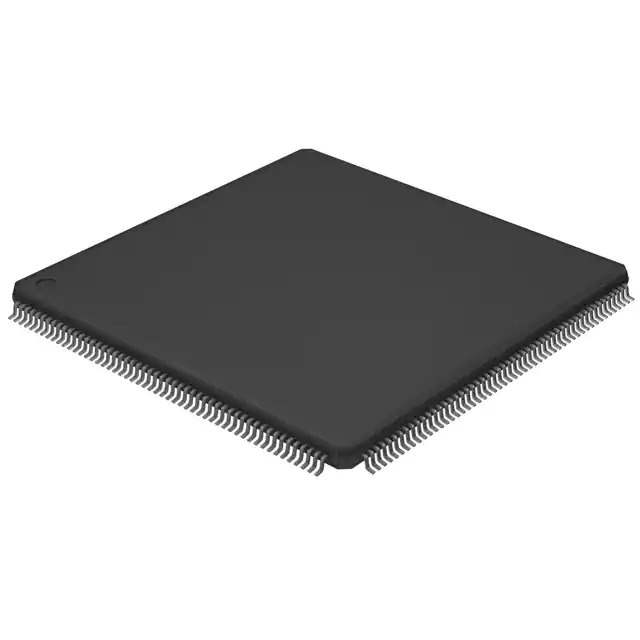

• Package: Available in a compact 208-pin LQFP package, which is conducive to space-constrained applications.

Applications:

The LPC1788FBD208,551 is versatile enough to support a broad range of applications, such as:

• Industrial control systems
• Medical devices
• Navigation systems
• Point-of-sale terminals
• Communication gateways
• Robotics

With its robust set of features and capabilities, the NXP LPC1788FBD208,551 is a reliable choice for designers looking to develop systems with advanced user interfaces and high-speed connectivity. Its integration of a vast array of peripherals and memory options, along with the powerful ARM Cortex-M3 core, makes it a highly flexible and efficient solution for complex embedded tasks.
