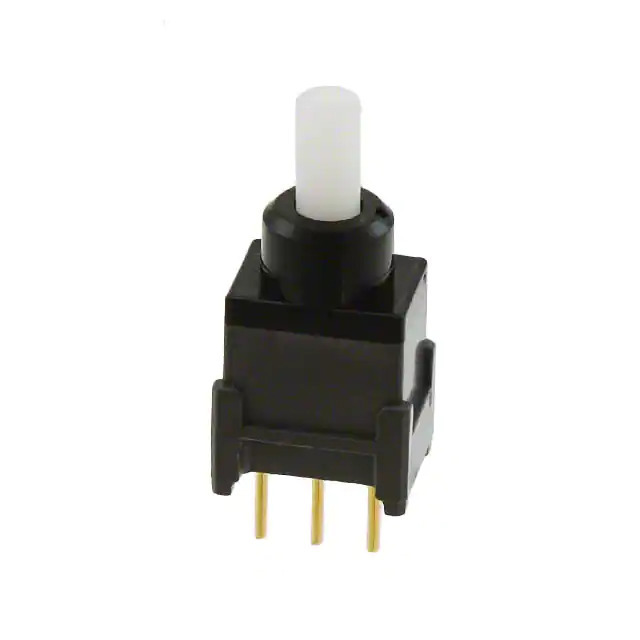

BB15AP NKK Switches
Same model may have multiple batches, images only for reference.

BB15AP

Part No BB15AP
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr NKK Switches
Series BB
Package Box
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Antistatic
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376084-BB15AP
Ultra Librarian 3D Model Ultra Librarian BB15AP CAD Model

Description

The NKK Switches BB15AP is a through hole pushbutton switch with a current rating of 0.4VA (AC/DC).

  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating (AC): 28V
  • Voltage Rating (DC): 28V
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Plunger for Cap
  • Actuator/Cap Color: White
  • Illumination: Non-Illuminated
  • Marking: No Marking
  • Mechanical Life: 50,000 cycles
  • Electrical Life: 50,000 cycles
  • Package: Box
  • Temperature Range: -30°C to 85°C
