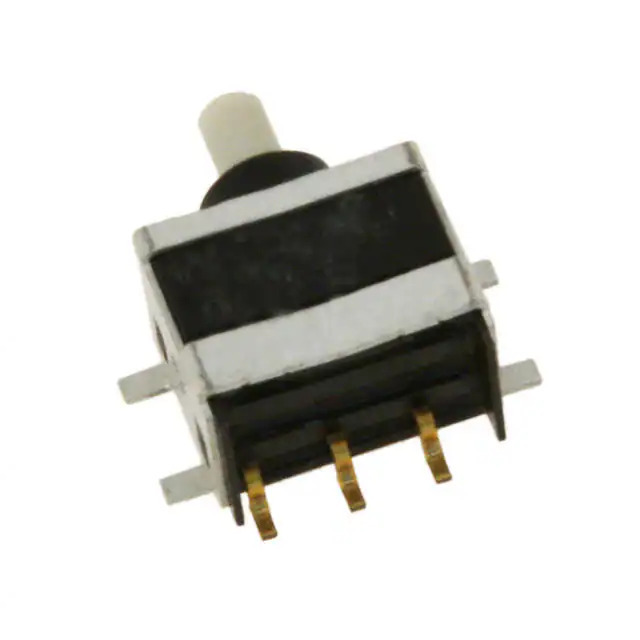

CFPA-1FB4-A2T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFPA-1FB4-A2T

Part No CFPA-1FB4-A2T
Manufacturer Nidec Copal Electronics
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V
Datasheet
CFPA-1FB4-A2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Nidec Components Corporation
Series CFPA
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Gull Wing
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life -
Electrical Life 50,000 Cycles
Base Product Number CFPA-1FB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376034-CFPA-1FB4-A2T
Ultra Librarian 3D Model Ultra Librarian CFPA-1FB4-A2T CAD Model

Description

The CFPA-1FB4-A2T is a pushbutton switch manufactured by Nidec Components Corporation.

  • Series: CFPA
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V (AC/DC)
  • Mounting Type: Surface Mount, Right Angle
  • Termination Style: Gull Wing
  • Actuator/Cap Color: White
  • Actuator Type: Plunger for cap
  • Marking: No Marking
