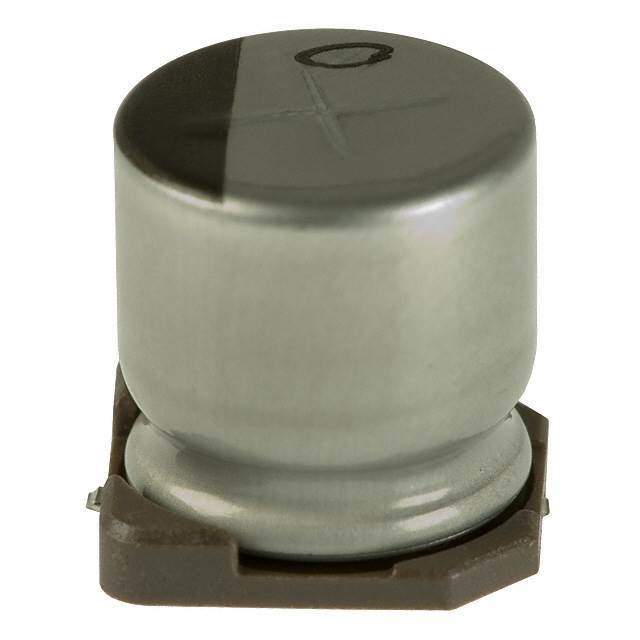

UUD1E471MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1E471MNL1GS

Part No UUD1E471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2280-1,493-2280-2,Q2693561,493-2280-6
Standard Package 500
Win Source Part Number 1000739-UUD1E471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1E471MNL1GS CAD Model

Description

This aluminum electrolytic capacitor is a part of the UUD series and is designed for use in automotive applications.

  • Series: UUD
  • Application: Automotive
  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 90 mOhms
  • Ripple Current: 335 mA (low frequency), 670 mA (high frequency)
  • Package: Radial, Can - SMD
  • Mounting: SMD (SMT)
  • Diameter: 0.394"
  • Seated Height: 0.394" (10.00mm)
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Lifetime: 5000 Hrs @ 105°C
  • Polarity: Polarized
  • Temperature Range: -55°C to 105°C
  • AEC-Q200: Rated
  • Standard Package Size: 500
  • Manufacturer: Nichicon
