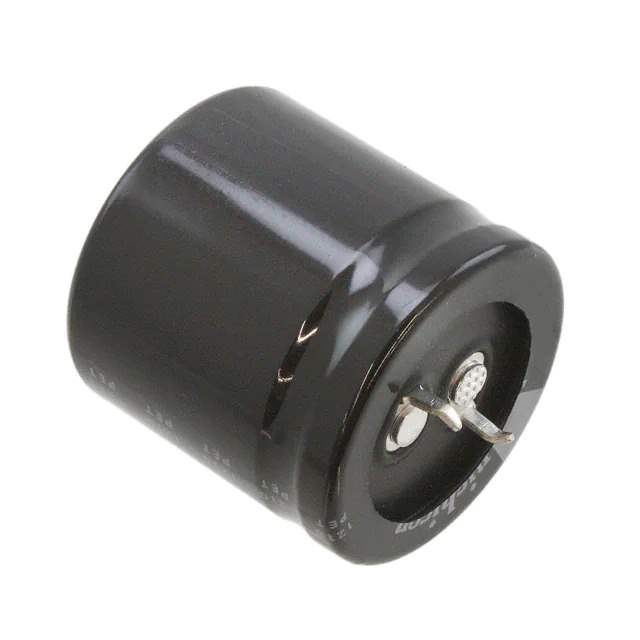

Same model may have multiple batches, images only for reference.

LGU2D821MELB

Name: LGU2D821MELB
Brand: Nichicon
SKU: 848595
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGU2D821MELB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 820UF 20% 200V SNAP
Datasheet	LGU2D821MELB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Product Status	Active
Capacitance	820 µF
Tolerance	±20%
Voltage - Rated	200 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.04 A @ 120 Hz
Ripple Current @ High Frequency	3.06 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.181" (30.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	848595-LGU2D821MELB
Ultra Librarian 3D Model	Ultra Librarian LGU2D821MELB CAD Model

Description

The LGU series aluminum electrolytic capacitor by Nichicon is a high-capacity and reliable component for your electronic circuits.

Series: LGU
Capacitance: 820 µF
Voltage Rating: 200V
Diameter: 1.181" (30.00mm)
Height: 1.181" (30.00mm)
Mounting Type: Through-Hole
Lifetime: 3000 hours @ 105°C
Product Status: Active
