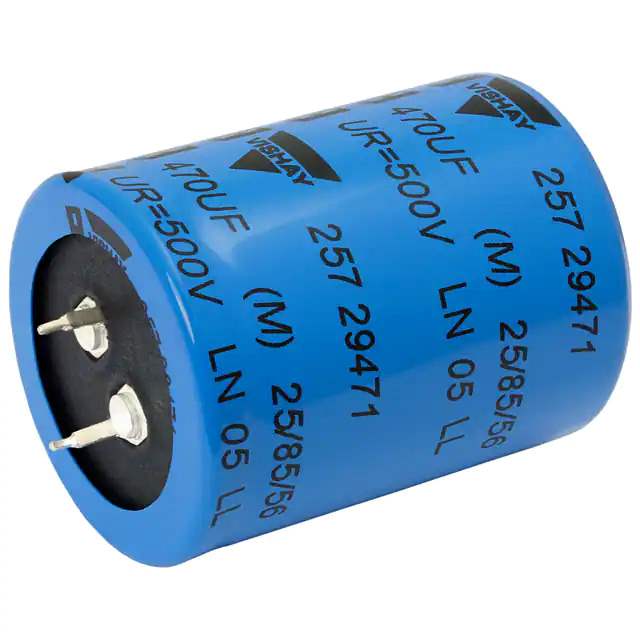

Same model may have multiple batches, images only for reference.

MAL225722122E3

Name: MAL225722122E3
Brand: Vishay
SKU: 854629
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MAL225722122E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 1200UF 20% 200V SNAP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay
Series	257 PRM-SI
Package	Box
Product Status	Active
Capacitance	1200 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	180mOhm @ 100Hz
Lifetime @ Temp.	5000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.78 A @ 100 Hz
Ripple Current @ High Frequency	3.892 A @ 10 kHz
Impedance	140 mOhms
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	50 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	854629-MAL225722122E3
Ultra Librarian 3D Model	Ultra Librarian MAL225722122E3 CAD Model

Description

The 854629-MAL225722122E3 is a high-quality aluminum electrolytic capacitor from Vishay. It belongs to the 257 PRM-SI series and is designed for general-purpose applications.

Capacitance: 1200 µF
Voltage Rating: 200 V
Tolerance: ±20%
Impedance: 140 mOhms
Maximum Seated Height: 1.260" (32.00mm)
Lead Spacing: 0.394" (10.00mm)
ESR: 180mOhm @ 100Hz
Lifetime: 5000 hours @ 85°C
Polarization: Polar
Package: Radial, Can - Snap-In
Operating Temperature: -40°C to 85°C
