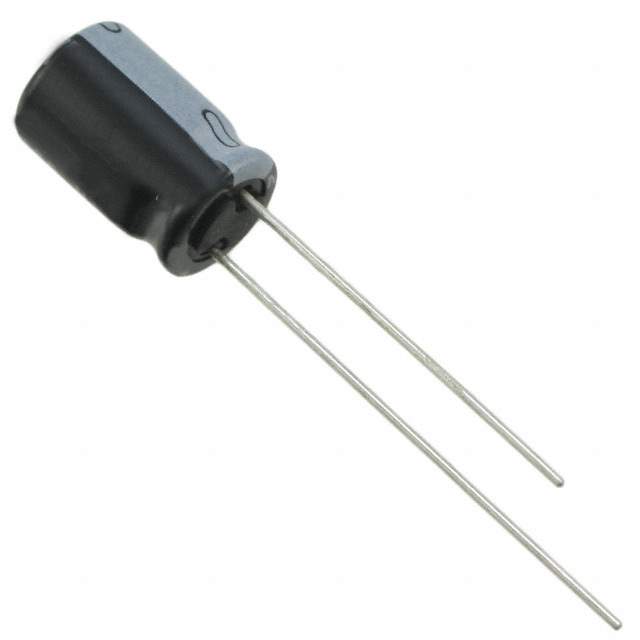

Same model may have multiple batches, images only for reference.

UHE1C471MPD1TD

Name: UHE1C471MPD1TD
Brand: Nichicon
SKU: 997554
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UHE1C471MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	630 mA @ 120 Hz
Ripple Current @ High Frequency	840 mA @ 100 kHz
Impedance	87 mOhms
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-15233-1,493-15233-2,493-15233-2-ND,UHE1C471MPD1TD-ND,493-15233-3
Standard Package	1,000
Win Source Part Number	997554-UHE1C471MPD1TD
Ultra Librarian 3D Model	Ultra Librarian UHE1C471MPD1TD CAD Model

Description

The UHE series aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 470 µF and voltage rating of 16 V.

Capacitance: 470 µF
Voltage Rating: 16 V
Tolerance: ±20%
Impedance: 87 mOhms
ESR: Not specified
Surface Mount Land Size: Not specified
Lifetime @ Temperature: 7000 Hrs @ 105°C
Polarization: Polar
Mounting Type: Through-hole
Package/Case: Radial, can with a dimension of 0.315" Dia (8.00mm)
Ripple Current @ Low Frequency: 630 mA @ 120 Hz
Ripple Current @ High Frequency: 840 mA @ 100 kHz
Manufacturer: Nichicon
Standard Package: 1,000
Recommendation: Not recommended for new designs
