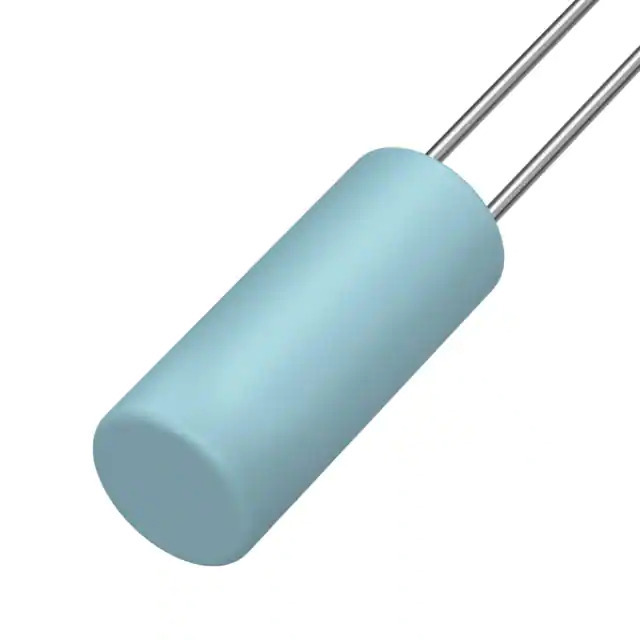

Same model may have multiple batches, images only for reference.

MAL211651229E3

Name: MAL211651229E3
Brand: Vishay
SKU: 1358003
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAL211651229E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 50V RADIAL / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	MAL211651229E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	116 RLL
Package	Tape & Box (TB)
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Automotive
Ripple Current @ Low Frequency	69.3 mA @ 100 Hz
Impedance	1.9 Ohms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358003-MAL211651229E3
Ultra Librarian 3D Model	Ultra Librarian MAL211651229E3 CAD Model

Alternative Products

Description

The MAL211651229E3 is an aluminum electrolytic capacitor with a capacitance of 22 μF and a tolerance of ±20%.

Product Name: MAL211651229E3
Manufacturer: Vishay Beyschlag/Draloric/BC Components
Series: 116 RLL
Capacitance: 22 μF
Tolerance: ±20%
Voltage Rating: 50V
Operating Temperature: -55°C to 105°C
Application: Automotive
Ripple Current: 69.3 mA @ 100 Hz
Package: Radial, Can Type
Mounting Type: Through Hole
Diameter: 0.197"
Height: 0.472"
Lead Spacing: 0.197"
Status: Active
Packaging: Tape and Box
