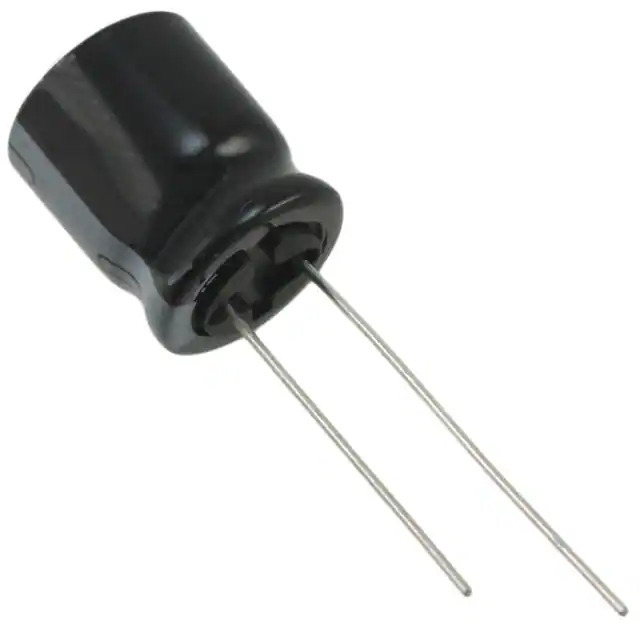

Same model may have multiple batches, images only for reference.

UHE1V681MHD6

Name: UHE1V681MHD6
Brand: Nichicon
SKU: 1358015
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHE1V681MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 35V RADIAL / 680 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHE1V681MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.425 A @ 120 Hz
Ripple Current @ High Frequency	1.9 A @ 100 kHz
Impedance	35 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358015-UHE1V681MHD6
Ultra Librarian 3D Model	Ultra Librarian UHE1V681MHD6 CAD Model

Description

The UHE1V681MHD6 is an aluminum electrolytic capacitor from Nichicon's UHE series from Nichicon.

Series: UHE
Capacitance: 680 µF
Voltage Rating: 35 V
Tolerance: ±20%
Lifetime: 10000 hours @ 105°C
Ripple Current (Low Freq): 1.425 A
Ripple Current (High Freq): 1.9 A
Mounting Type: Through-Hole
Package: Radial, Can
Size: 0.492" in diameter and 0.787" in height
Lead Spacing: 0.197"
REACH: Unaffected
ECCN: EAR99
