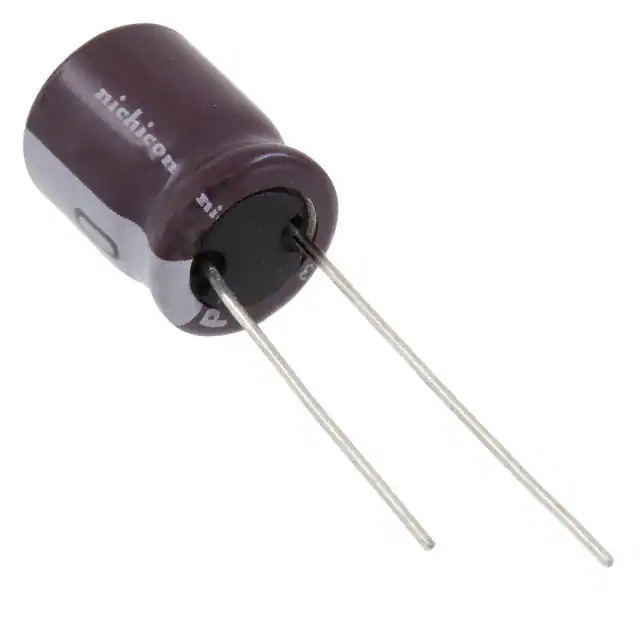

Same model may have multiple batches, images only for reference.

UPM1H820MPD6

Name: UPM1H820MPD6
Brand: Nichicon
SKU: 1357980
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPM1H820MPD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 82UF 20% 50V RADIAL / 82 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPM1H820MPD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	82 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	340 mA @ 120 Hz
Impedance	180 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357980-UPM1H820MPD6
Ultra Librarian 3D Model	Ultra Librarian UPM1H820MPD6 CAD Model

Description

The UPM1H820MPD6 is a high-quality aluminum electrolytic capacitor manufactured by Nichicon.

Series: UPM
Application: General Purpose
Capacitance: 82 μF
Voltage - Rated: 50 V
Tolerance: ±20%
Ripple Current @ Low Frequency: 340 mA @ 120 Hz
Size / Dimension: 0.394" Dia (10.00mm)
Height - Seated (Max): 0.571" (14.50mm)
Package / Case: Radial, Can
Mounting Type: Through Hole
Lifetime @ Temp.: 5000 Hrs @ 105°C
REACH Status: Unaffected
ECCN: EAR99
