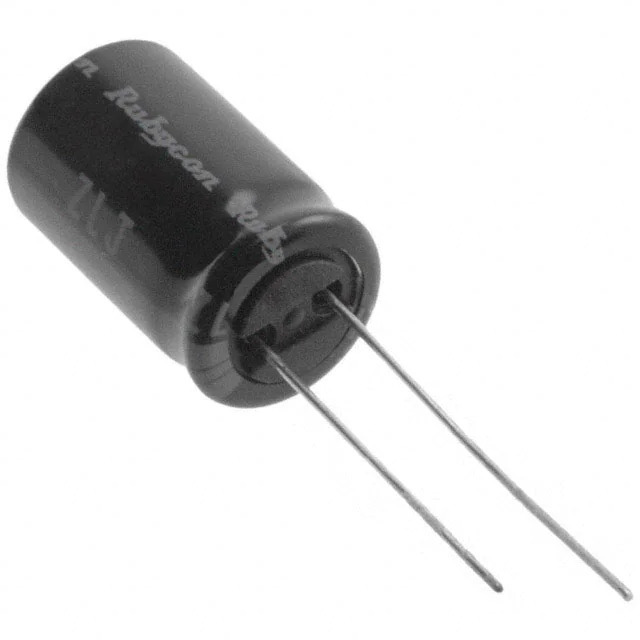

10RX302200M12.5X25 Rubycon
Same model may have multiple batches, images only for reference.

10RX302200M12.5X25

Part No 10RX302200M12.5X25
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 10V RADIAL / 2200 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series RX30
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 130°C
Temperature Range - Operating -40°C ~ 130°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.144 A @ 120 Hz
Ripple Current @ High Frequency 1.43 A @ 100 kHz
Impedance 40 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357950-10RX302200M12.5X25
Ultra Librarian 3D Model Ultra Librarian 10RX302200M12.5X25 CAD Model

Description

The Rubycon RX30 series aluminum electrolytic capacitor is a high-quality component suitable for a wide range of applications, especially in automotive systems.

  • Capacitance: 2200 μF
  • Voltage Rating: 10 V
  • Tolerance: ±20%
  • Temperature Range: -40°C to 130°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 5.00mm
  • Size/Dimension: 12.50mm Dia x 26.50mm H
  • Lifetime: 4000 hours @ 130°C
  • Ripple Current (Low Frequency): 1.144 A @ 120 Hz
  • Ripple Current (High Frequency): 1.43 A @ 100 kHz
  • AEC-Q200: Yes
