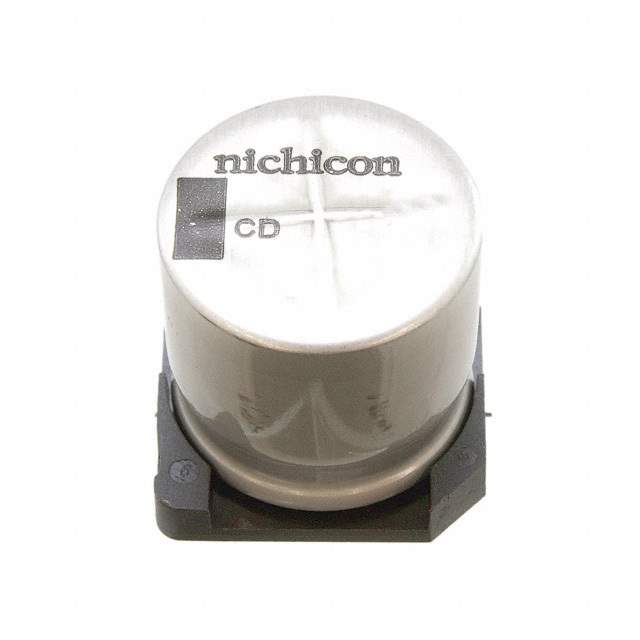

Same model may have multiple batches, images only for reference.

UCD2A101MNQ1MS

Name: UCD2A101MNQ1MS
Brand: Nichicon
SKU: 1102064
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD2A101MNQ1MS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 100V SMD / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	396.5 mA @ 120 Hz
Ripple Current @ High Frequency	793 mA @ 100 kHz
Impedance	170 mOhms
Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UCD2A101MNQ1MS-ND,493-6431-6,493-6431-2,493-6431-1
Standard Package	125
Win Source Part Number	1102064-UCD2A101MNQ1MS
Ultra Librarian 3D Model	Ultra Librarian UCD2A101MNQ1MS CAD Model

Description

The UCD2A101MNQ1MS is a 100uF, 100V aluminum electrolytic capacitor manufactured by Nichicon.

Supply and demand status: unlimited
Category: capacitor product
Alternative parts (cross-reference): EEV-FK2A101M, EEE-FK2A101AM, and EMVH101ATR101MLH0SUCD2A101MNQ1MS
AEC-Q200 rated: Yes
Lifetime: 5000 Hrs @ 105°C
Polarized: Yes
Capacitance tolerance: ±20%
Applications: various applications such as automotive, power supplies, and lighting
