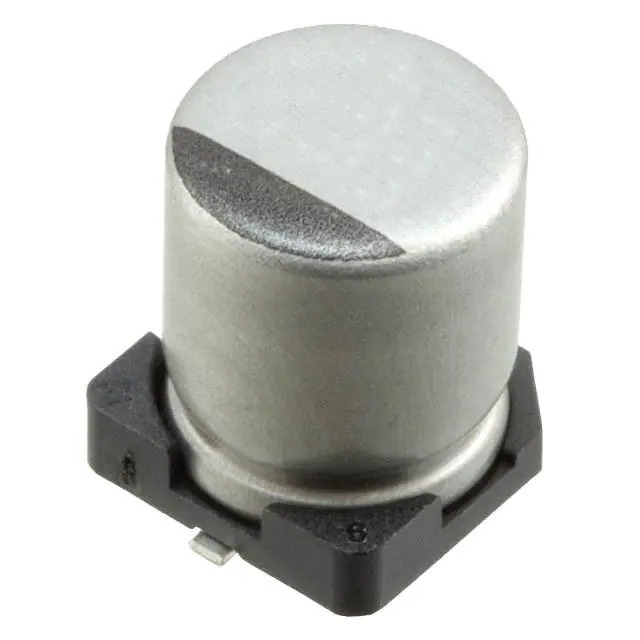

The UCD0J331MCL1GS is a radial, can - SMD type aluminum electrolytic capacitor from Nichicon's UCD series. It has a capacitance of 330 µF with a tolerance of ±20%. The rated voltage for this capacitor is 6.3 V. With a temperature range of -55°C to 105°C, it is suitable for automotive applications. The UCD0J331MCL1GS has a ripple current of 145 mA @ low frequency (120 Hz) and 290 mA @ high frequency (100 kHz). It has a size/dimension of 0.248" Dia (6.30mm) and a maximum seated height of 0.315" (8.00mm). This capacitor is designed for surface mount mounting and is currently active. It has a surface mount land size of 0.260" L x 0.260" W (6.60mm x 6.60mm). The UCD0J331MCL1GS is REACH unaffected and has an ECCN of EAR99. It is polarization polar and has an impedance of 320 mOhms.

• Series: UCD
• Type: Radial, Can - SMD
• Capacitance: 330 µF
• Tolerance: ±20%
• Voltage Rating: 6.3 V
• Temperature Range: -55°C to 105°C
• Application: Automotive
• Ripple Current (Low Frequency): 145 mA @ 120 Hz
• Ripple Current (High Frequency): 290 mA @ 100 kHz
• Size/Dimension: 0.248" Dia (6.30mm)
• Maximum Seated Height: 0.315" (8.00mm)
• Mounting Type: Surface Mount
• Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
• REACH: Unaffected
• ECCN: EAR99
• Polarization: Polar
• Impedance: 320 mOhms
