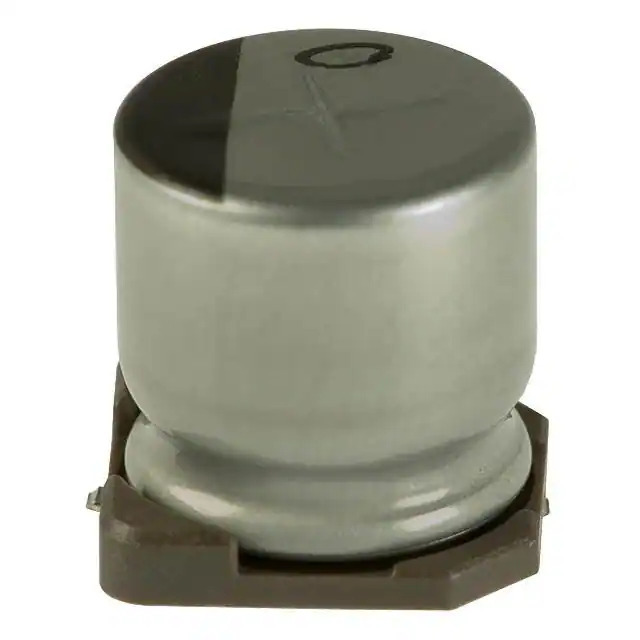

UUD1C681MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUD1C681MNL1GS

Part No UUD1C681MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V SMD / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUD1C681MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360218-UUD1C681MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1C681MNL1GS CAD Model

Description

The UUD1C681MNL1GS is an aluminum electrolytic capacitor from Nichicon's UUD series.

  • Designed for: Automotive applications
  • Capacitance: 680 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ a temperature of 105°C
  • Ripple Current (Low Frequency): 335 mA
  • Ripple Current (High Frequency): 670 mA
  • Mounting: Surface mount
  • Package: Radial, can - SMD
  • Size: 0.394" in diameter and 0.413" in height
  • Surface Mount Land Size: 0.406" x 0.406"
  • REACH: Unaffected
  • ECCN: EAR99
  • Market Status: Active
  • Meets: AEC-Q200 ratings
