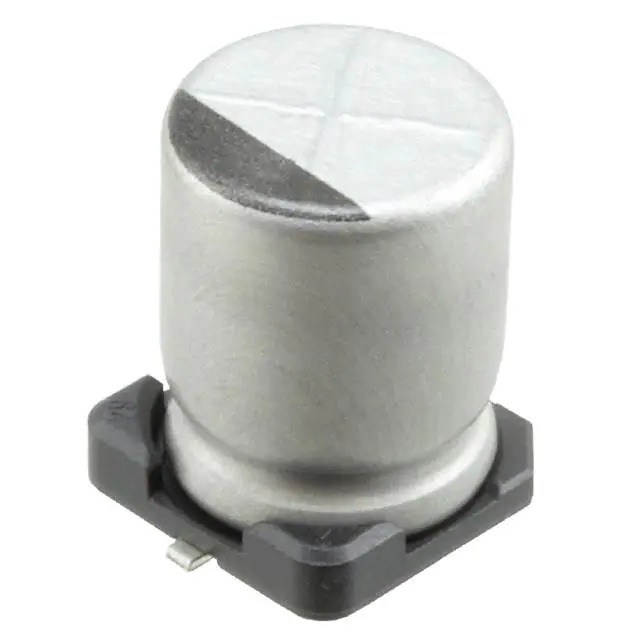

UCD1C331MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1C331MNL1GS

Part No UCD1C331MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 16V SMD / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UCD1C331MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360329-UCD1C331MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1C331MNL1GS CAD Model

Description

The 1360329-UCD1C331MNL1GS is a surface mount aluminum electrolytic capacitor from Nichicon.

  • Series: UCD
  • Package: Tape & Reel
  • Capacitance: 330 µF
  • Voltage Rating: 16 V
  • Temperature Range: -55°C to 105°C
  • Application: Automotive
  • Ripple Current (Low Frequency): 300 mA @ 120 Hz
  • Ripple Current (High Frequency): 600 mA @ 100 kHz
  • Size: 0.315" (8.00mm) Dia
  • Height: 0.413" (10.50mm) Seated
  • Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • AEC-Q200: Yes
  • Lifetime: 5000 Hrs @ 105°C
  • REACH: Unaffected
  • Polarization: Yes
