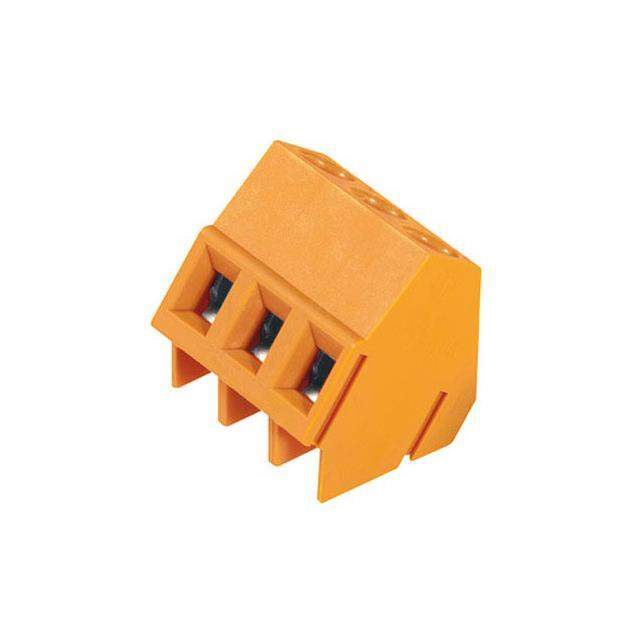

1716130000 Real Image
Same model may have multiple batches, images only for reference.

1716130000

Part No 1716130000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLOCK 3POS 45DEG 5.08MM PCB / 3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Datasheet
1716130000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Weidmüller
Series Omnimate LM
Package Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation 45° (135°) Angle with Board
Current 15 A
Voltage 300 V
Wire Gauge 14-24 AWG
Mounting Type Through Hole
Wire Termination Screw - Clamping Yoke, Tension Sleeve
Features Interlocking (Side)
Color Orange
Temperature Range - Operating -50°C ~ 120°C
Housing Material Thermoplastic, Wemid
Contact Material - Plating Copper Alloy - Tin Plated
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Screw Thread M2.5
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350861-1716130000
Ultra Librarian 3D Model Ultra Librarian 1716130000 CAD Model

Description

The Weidmüller 1350861-1716130000 is a high-quality wire-to-board connector that is designed for use in a wide range of applications.

  • Pitch: 0.200" (5.08mm)
  • Color: Orange
  • Series: Omnimate LM
  • Voltage: Up to 300V
  • Current Rating: 15A
  • Wire Termination: Screw-Clamping Yoke and Tension Sleeve
  • Contact Material: Copper Alloy (Tin Plated)
  • Temperature Range: -50°C to 120°C
