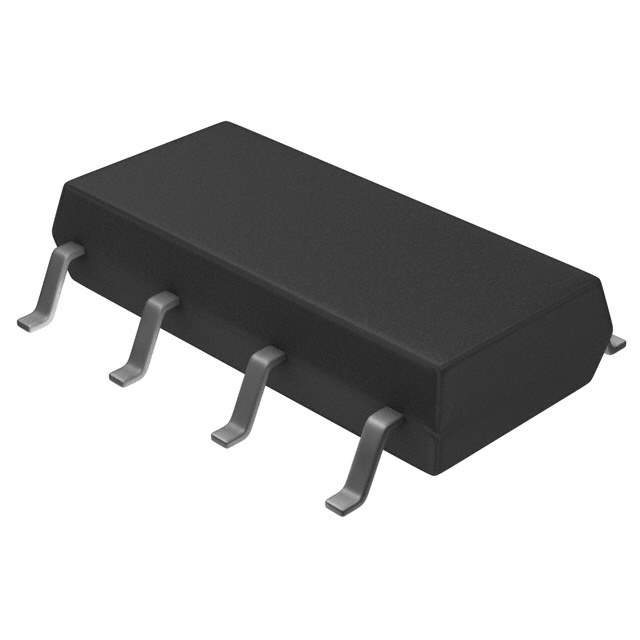

The PS7211-2A is a 4-pin solid state relay (SSR) manufactured by NEC (now Renesas Electronics). It features two normally open (2A) contacts, providing electrical isolation between the control circuit and the load circuit. It is designed for various switching applications, providing a reliable and fast alternative to electromechanical relays.

Applications:

• Industrial control systems
• Security systems
• Automatic test equipment
• Medical equipment
• Office automation equipment

Features:

• 2 Form A (2 NO) contact configuration
• Rated Load Voltage: 20 to 400V
• Load current up to 120 mA
• High isolation voltage: 5000Vrms
• Low on-resistance
• Compact 4-pin package

Benefits:

• Electrical isolation: Provides complete isolation between the control and load circuits, protecting sensitive control circuitry from high voltages and surges.
• Long lifespan: Solid-state design offers significantly longer lifespan compared to electromechanical relays, reducing maintenance and replacement costs.
• Fast switching speed: Enables rapid switching, improving system response time.
• Low power consumption: Requires minimal power for operation, contributing to energy efficiency.
• Compact size: Space-saving design allows for integration into densely populated circuit boards.

Additional Details:

The PS7211-2A utilizes an LED to activate a photo-sensitive element, which in turn controls the output switch. This optical isolation ensures a high degree of safety and reliability. The SSR is suitable for switching both AC and DC loads within the specified voltage and current ratings. The device is designed to be directly driven by logic circuits, simplifying integration into control systems. Its robust design and high isolation voltage make it ideal for demanding industrial applications. The PS7211-2A is commonly used in applications where frequent switching is required, and the lifespan of electromechanical relays would be a limiting factor. Its silent operation is also an advantage in noise-sensitive environments. The device is compliant with RoHS standards, ensuring environmental friendliness. It's crucial to adhere to the voltage and current ratings to prevent damage to the SSR and connected circuitry.
