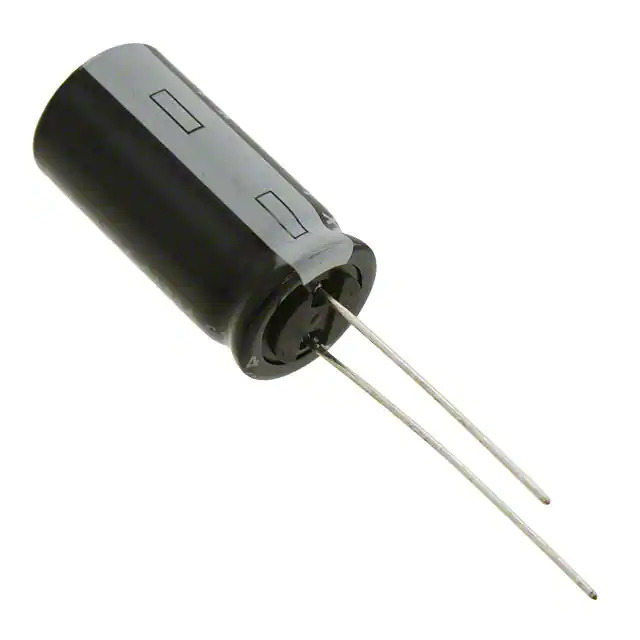

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 700 mA @ 120 Hz
Ripple Current @ High Frequency 840 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357692-63PX470MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 63PX470MEFC12.5X20 CAD Model

Description

The PX series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications by Rubycon.

  • Capacitance: 470 µF
  • Voltage Rating: 63 V
  • Application: General-Purpose
  • Package Style: Radial, Can
  • Mounting Type: Through Hole
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 700 mA @ 120 Hz
  • Ripple Current (High Frequency): 840 mA @ 10 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.492" Dia (12.50mm)
  • Lifetime: 2000 hours @ 105°C
