Same model may have multiple batches, images only for reference.

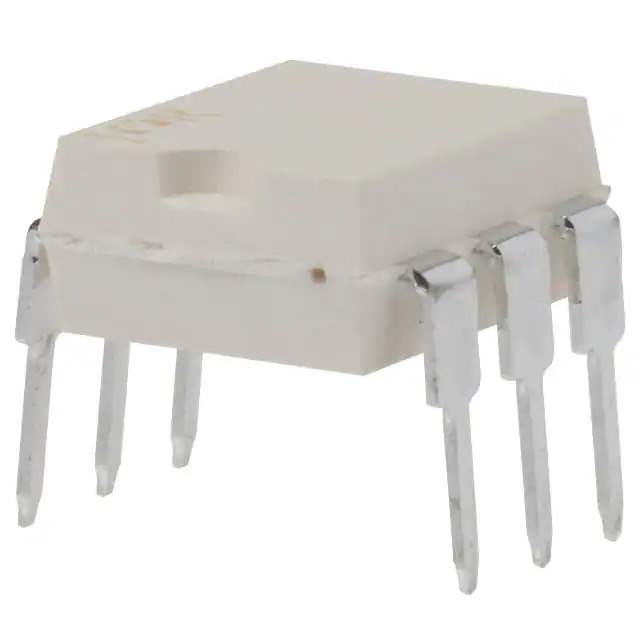

PVN012 Real Image
Same model may have multiple batches, images only for reference.

PVN012

Part No PVN012
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-20V / Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Datasheet
PVN012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVN, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 20 V
Load Current 2.5 A
On-State Resistance (Max) 100 mOhms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658193-PVN012
Ultra Librarian 3D Model Ultra Librarian PVN012 CAD Model

Description

The PVN012 is a solid-state relay from Infineon Technologies.

  • Product: PVN012
  • Manufacturer: Infineon Technologies
  • Series: PVN
  • Circuit: HEXFET
  • Termination Style: PC Pin
  • Mounting Type: Through-Hole
  • Voltage Input: 1.2VDC
  • Output Types: AC and DC
  • Package: 6-DIP
  • Load Current: 2.5A
  • Voltage Load Range: 0V to 20V
  • MSL Level: 1
